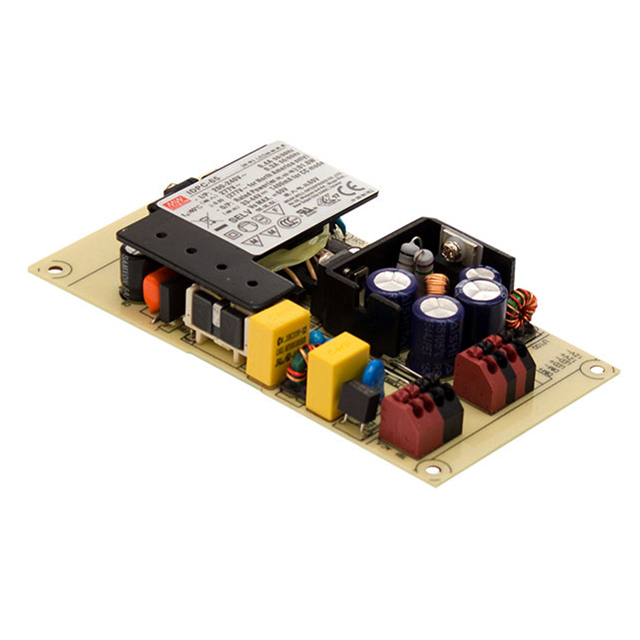

IDPC-65-1050

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 46-62V 1.05A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 46-62V 1.05A

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Mounting Type	Features	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Termination Style	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
MEAN WELL USA Inc. IDPC-65-1050	AC DC Converter	CB CCC CE cURus ENEC	5.12 "	20.5 mm	0.81 in	67.5 mm	2.66 "	130 mm	65 W	180 VAC	3750 V	Constant Current	Chassis Mount	SCP	46 V	62 V	Analog PWM	Terminal Block	1	295 VAC	87 %	1.05 A	-20 C	40 °C
MEAN WELL USA Inc. IDPC-65A-1050	AC DC Converter	CB CCC CE cURus ENEC	5.12 "	20.5 mm	0.81 in	67.5 mm	2.66 "	130 mm	65 W	180 VAC	3750 V	Constant Current	Chassis Mount	SCP	46 V	62 V	Analog PWM	Terminal Block	1	295 VAC	87 %	1.05 A	-20 C	40 °C
MEAN WELL USA Inc. IDPC-65A-1400	AC DC Converter	CB CCC CE cURus ENEC	5.12 "	20.5 mm	0.81 in	67.5 mm	2.66 "	130 mm	64 W	180 VAC	3750 V	Constant Current	Chassis Mount	SCP			Analog PWM	Terminal Block	1	295 VAC	86 %	1.4 A	-20 C	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.05A 46 ~ 62V Constant Current LED Driver AC DC Converter Topology 1 Output
