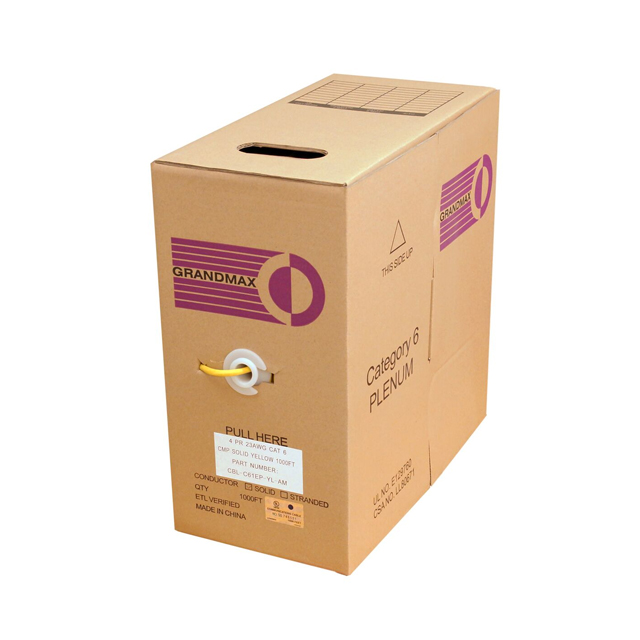

CBL-C61EP-YL-AM

Active

Y.C. Cable (East)

CABLE CAT6 8COND 23AWG YLW 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBL-C61EP-YL-AM

Active

Y.C. Cable (East)

CABLE CAT6 8COND 23AWG YLW 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBL-C61EP-YL-AM

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Ratings	UL Style CMP
Wire Gauge	23 AWG

CBL-C61 Series

Part	Number of Conductors	Length	Length	Conductor Insulation	Wire Gauge	Jacket Color	Jacket (Insulation) Material	Conductor Strand	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Cable Type	Conductor Material	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Shield Type	Shield Coverage	Shield Material
Y.C. Cable (East) CBL-C61PR-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Violet	Poly-Vinyl Chloride (PVC)	Solid	5.79 mm	0.228 in	Multi-Pair Cat6	Copper Bare	UL Style CMR
Y.C. Cable (East) CBL-C61EP-RD-AM	8	1000 ft	304.8 m	Fluorinated Ethylene-Propylene (FEP)	23 AWG	Red	Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMP	5.99 mm	0.236 in
Y.C. Cable (East) CBL-C61ES-YL-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Yellow	Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMR	6.3 mm	0.248 in	Drain Wire	Foil	100 %	Aluminum
Y.C. Cable (East) CBL-C61ES-RD-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Red	Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMR	6.3 mm	0.248 in	Drain Wire	Foil	100 %	Aluminum
Y.C. Cable (East) CBL-C61ES-PR-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Violet	Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMR	6.3 mm	0.248 in	Drain Wire	Foil	100 %	Aluminum
Y.C. Cable (East) CBL-C61ES-WT-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG		Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMR	6.3 mm	0.248 in	Drain Wire	Foil	100 %	Aluminum
Y.C. Cable (East) CBL-C61EP-BL-AM	8	1000 ft	304.8 m	Fluorinated Ethylene-Propylene (FEP)	23 AWG	Blue	Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMP	5.99 mm	0.236 in
Y.C. Cable (East) CBL-C61OG-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Orange	Poly-Vinyl Chloride (PVC)	Solid	5.79 mm	0.228 in	Multi-Pair Cat6	Copper Bare	UL Style CMR
Y.C. Cable (East) CBL-C61ES-GN-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Green	Poly-Vinyl Chloride (PVC)	Solid			Multi-Pair Cat6	Copper Bare	UL Style CMR	6.3 mm	0.248 in	Drain Wire	Foil	100 %	Aluminum
Y.C. Cable (East) CBL-C61YL-AM	8	1000 ft	304.8 m	High Density Polyethylene (HDPE)	24 AWG	Yellow	Poly-Vinyl Chloride (PVC)	Solid	5.79 mm	0.228 in	Multi-Pair Cat6	Copper Bare	UL Style CMR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 305.00

Description

General part information

CBL-C61 Series

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Yellow 23 AWG 1000.0' (304.8m)

Documents

Technical documentation and resources
