CBL-C61ES-GN-AM
ActiveY.C. Cable (East)

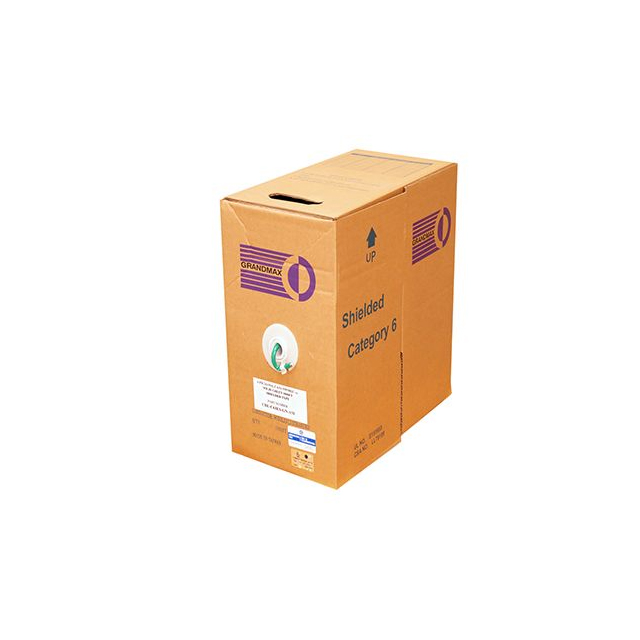

CABLE CAT6 8COND 24AWG GRN 1000'
CBL-C61ES-GN-AM
ActiveY.C. Cable (East)
CABLE CAT6 8COND 24AWG GRN 1000'
Description
General part information
CBL-C61 Series
8 (4 Pair) Conductor Multi-Pair, Cat6 Cable Green 24 AWG Foil 1000.0' (304.8m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBL-C61ES-GN-AM |
|---|---|
| Cable Type | Cat6, Multi-Pair, Cat6e |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Drain Wire |
| Jacket (Insulation) Diameter | 0.248 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Green |
| Length | 1000 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | UL, CMR, Style |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 24 AWG |
