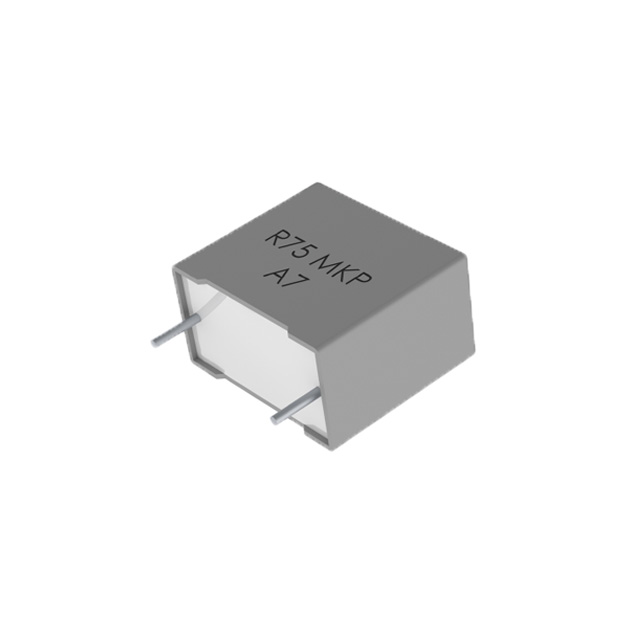

R75GR44704030J

Active

KEMET

FILM CAPACITOR, R75 SERIES, 4.7 F, 5%, PP (POLYPROPYLENE), 160 V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, R75 SERIES, 4.7 F, 5%, PP (POLYPROPYLENE), 160 V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R75GR44704030J

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	4.7 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	25.1 mm
Height - Seated (Max) [Max] [z]	0.988 "
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	90 V
Voltage Rating - DC	160 V

Part	Tolerance	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Dielectric Material	Voltage Rating - DC	Ratings	Lead Spacing	Lead Spacing	Termination	Applications	ESR (Equivalent Series Resistance)	Mounting Type	Voltage Rating - AC	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R75GR433050H0J	5 %	3.3 µF	32 mm	13 mm	1.26 in	0.512 in	0.87 in	22.1 mm	-55 °C	125 °C	Radial	Metallized Polypropylene (PP)	160 V	AEC-Q200	27.5 mm	1.083 in	PC Pins	Automotive High Frequency Switching High Pulse DV/DT	7.2 mOhms	Through Hole	90 V
KEMET R75GR468050H0J	5 %	6.8 ÁF	32 mm		1.26 in	0.709 "			-55 °C	125 °C	Radial	Metallized Polypropylene (PP)	160 V	AEC-Q200	27.5 mm	1.083 in	PC Pins	Automotive High Frequency Switching High Pulse DV/DT	7 mOhms	Through Hole	90 V	18 mm
KEMET R75GR44704030J	5 %	4.7 µF	32 mm	13 mm	1.26 in	0.512 in	0.988 "	25.1 mm	-55 °C	105 ░C	Radial	Metallized Polypropylene (PP)	160 V		27.5 mm	1.083 in	PC Pins	DV/DT High Frequency High Pulse Switching		Through Hole	90 V
KEMET R75GR510050H0J	5 %	10 µF	32 mm		1.26 in	0.866 in			-55 °C	125 °C	Radial	Metallized Polypropylene (PP)	160 V	AEC-Q200	27.5 mm	1.083 in	PC Pins	Automotive High Frequency Switching High Pulse DV/DT	4.8 mOhms	Through Hole	90 V	22 mm	37.1 mm	1.461 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial
