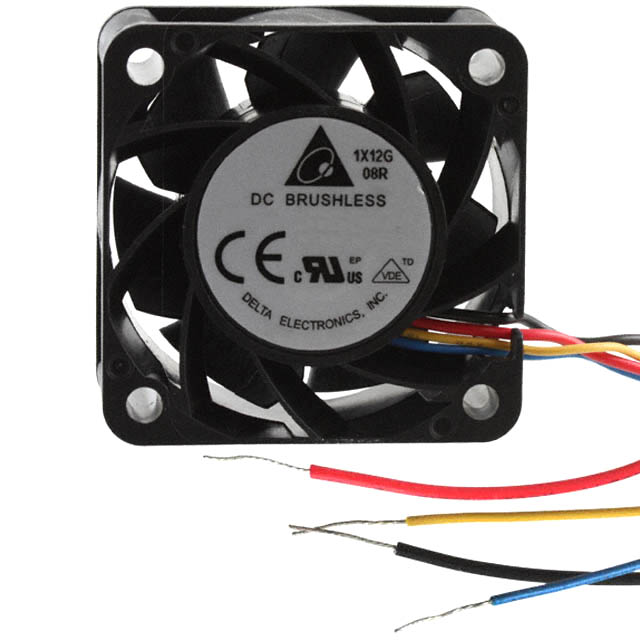

THA0412AD

Active

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	THA0412AD	THA0412 Series

Air Flow	0.577 mł/min	0.577 - 0.826 mł/min
Air Flow	20.6 CFM	20.6 - 29.5 CFM
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	430 mA	0.89 - 430 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic, Aluminum
Noise	52 dB	52 - 59 dB
Operating Temperature	-	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-25 - -10 °C
Operating Temperature [Min]	-10 °C	-25 - -10 °C
Power (Watts)	5.16 W	5.16 - 10.68 W
RPM	15600 RPM	15600 - 19000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	1.385 in H2O	1.385 - 2.4 in H2O
Static Pressure	345 Pa	345 - 597.8 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	14 V	13.2 - 15 V
Voltage Range [Min]	7 V	7 V
Weight	0.057 lb	0.057 - 0.102 lb
Weight	25.85 g	25.85 - 46.27 g
Width [y]	20 mm	20 - 28 mm

FAN AXIAL 40X20MM 12VDC WIRE

Part	Width [y]	Voltage - Rated	RPM	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Noise	Approval Agency	Material - Frame	Power (Watts)	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features	Weight	Weight	Operating Temperature [Max]	Ingress Protection
Delta Electronics THA0412AD	20 mm	12 VDC	15600 RPM	Ball	14 V	7 V	Tubeaxial	70000 Hrs	Plastic	430 mA	52 dB	CE, cURus, TUV	Plastic	5.16 W	1.385 in H2O	345 Pa	40 mm	Square	40 mm	0.577 mł/min	20.6 CFM	4 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	0.057 lb	25.85 g
Delta Electronics THA0412BN	28 mm	12 VDC	19000 RPM	Ball	13.2 VDC	7 V	Tubeaxial	70000 Hrs	Plastic	0.89 A	59 dB(A)	CE, cURus, TUV	Aluminum	10.68 W	2.4 in H2O	597.8 Pa	40 mm	Square	40 mm	0.826 m³/min	29.5 CFM	4 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	0.102 lb	46.27 g
Delta Electronics THA0412AD-TZW3	20 mm	12 VDC	15600 RPM	Ball	15 V	7 V	Tubeaxial	70000 Hrs	Plastic	430 mA	52 dB	CE, cURus, TUV	Plastic	5.16 W	1.385 in H2O	345 Pa	40 mm	Square	40 mm	0.577 mł/min	20.6 CFM	4 Wire Leads		70 °C	-25 °C	-25 °C	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	0.057 lb	25.85 g	70 °C	IP55 - Dust Protected, Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 20.6 CFM (0.577m³/min) 4 Wire Leads
