Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-MKI177V1 |
|---|---|
| Contents | Board(s) |
| Function | Pressure |
| Interconnect System | DIL24 |
| Platform | Professional MEMS Tool |
| Suggested Programming Environment | Unico |
| Type | Sensor |
| Utilized IC / Part | LPS35HW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.64 | |
Description
General part information
STEVAL-MKI177V1 Series

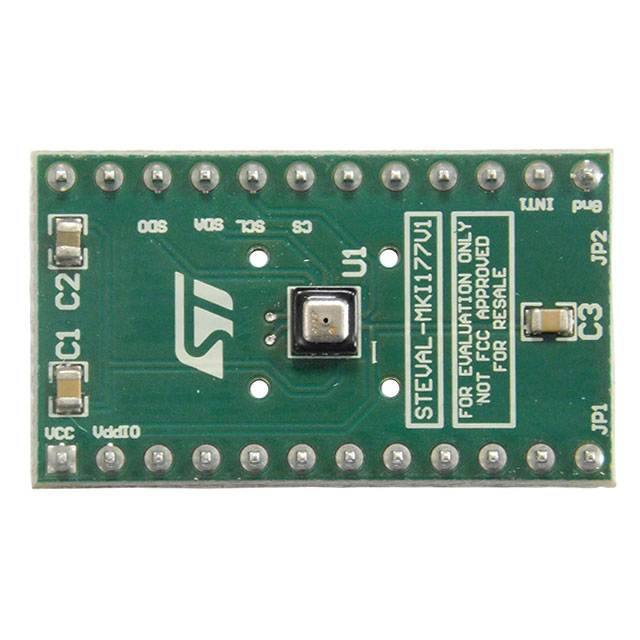

The STEVAL-MKI177V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LPS35HW product family. The board offers an effective solution for fast system prototyping and device evaluation directly inside the user’s application.
The STEVAL-MKI177V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LPS35HW pin-out and comes ready-to-use with the required decoupling capacitors on the VDDpower supply line.
This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC running the downloadable graphical user interface (Unico GUI) or dedicated software routines for customized applications.
