PIC16LF1704T-I/ML

Active

Microchip Technology

IC MCU 8BIT 7KB FLASH 16QFN

Find alt

Alpha

PIC16LF1704T-I/ML

Active

Microchip Technology

IC MCU 8BIT 7KB FLASH 16QFN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC16LF1704 Series

[MPLAB CODE CONFIGURATOR](https://www.microchip.com/en-us/development-tool/CODE-CONFIGURATOR)

MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC16LF1704T-I/ML

A/D Channels	8 count
A/D Resolution (bits)	10 bit
Connectivity	I2C, LINbus, UART, SPI, USART
Core Processor	PIC
Core Size (Bit Width)	8 Bit
D/A Channels	1 count
D/A Resolution (bits)	8 bit
Mounting Type	Surface Mount
Number of I/O	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	16-VQFN Exposed Pad
Package Length	4 mm
Package Name	16-QFN
Package Width	4 mm
Peripherals	WDT, PWM, Brown-out Detect, POR, Reset
Program Memory Depth	4 K
Program Memory Size	7 KB
Program Memory Type	FLASH
Program Memory Width	14
RAM Size Depth	512
RAM Size Width	8 bit
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.8 V

PIC16LF1704 Series

Part	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Connectivity	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	Core Size (Bit Width)	Program Memory Depth	Program Memory Size	Program Memory Width	Speed	Package Name	A/D Channels	D/A Channels	D/A Resolution (bits)	A/D Resolution (bits)	Package Length	Package Width	Oscillator Type	Number of I/O	Program Memory Type	RAM Size Depth	RAM Size Width	Package / Case
Microchip Technology PIC16LF1704-I/P	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Through Hole	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-DIP 14-PDIP	8 count	1 count	8 bit	10 bit	0.3 in	7.62 mm	Internal	12	FLASH	512	8 bit
Microchip Technology PIC16LF1704T-I/ST	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-TSSOP	8 count	1 count	8 bit	10 bit	0.173 in	4.4 mm	Internal	12	FLASH	512	8 bit
Microchip Technology PIC16LF1704T-I/ML	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	16-QFN	8 count	1 count	8 bit	10 bit	4 mm	4 mm	Internal	12	FLASH	512	8 bit	16-VQFN Exposed Pad
Microchip Technology PIC16LF1704-I/ML	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	16-QFN	8 count	1 count	8 bit	10 bit	4 mm	4 mm	Internal	12	FLASH	512	8 bit	16-VQFN Exposed Pad
Microchip Technology PIC16LF1704-E/SL	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	125 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-SOIC	8 count	1 count	8 bit	10 bit	0.154 in	3.9 mm	Internal	12	FLASH	512	8 bit
Microchip Technology PIC16LF1704T-I/SL	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-SOIC	8 count	1 count	8 bit	10 bit	0.154 in	3.9 mm	Internal	12	FLASH	512	8 bit
Microchip Technology PIC16LF1704-E/P	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Through Hole	125 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-DIP 14-PDIP	8 count	1 count	8 bit	10 bit	0.3 in	7.62 mm	Internal	12	FLASH	512	8 bit
Microchip Technology PIC16LF1704-I/SL	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-SOIC	8 count	1 count	8 bit	10 bit	0.154 in	3.9 mm	Internal	12	FLASH	512	8 bit
Microchip Technology PIC16LF1704-E/ML	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	125 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	16-QFN	8 count	1 count	8 bit	10 bit	4 mm	4 mm	Internal	12	FLASH	512	8 bit	16-VQFN Exposed Pad

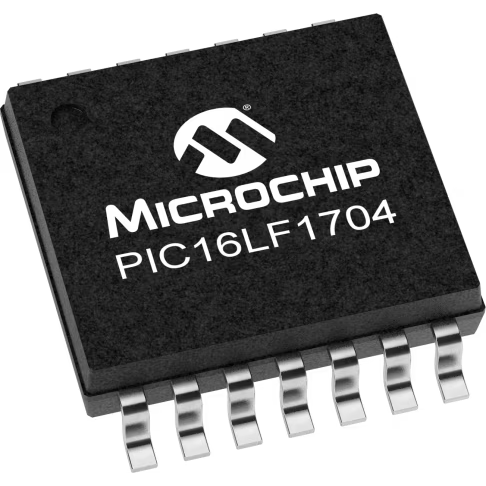

Microchip Technology PIC16LF1704-I/ST	Brown-out Detect POR PWM Reset WDT	3.6 V	1.8 V	I2C LINbus SPI UART USART	Surface Mount	85 °C	-40 °C	PIC	8 Bit	4 K	7 KB	14	32 MHz	14-TSSOP	8 count	1 count	8 bit	10 bit	0.173 in	4.4 mm	Internal	12	FLASH	512	8 bit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PIC16LF1704T-I/ML | Datasheet
