31-236

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-236

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms

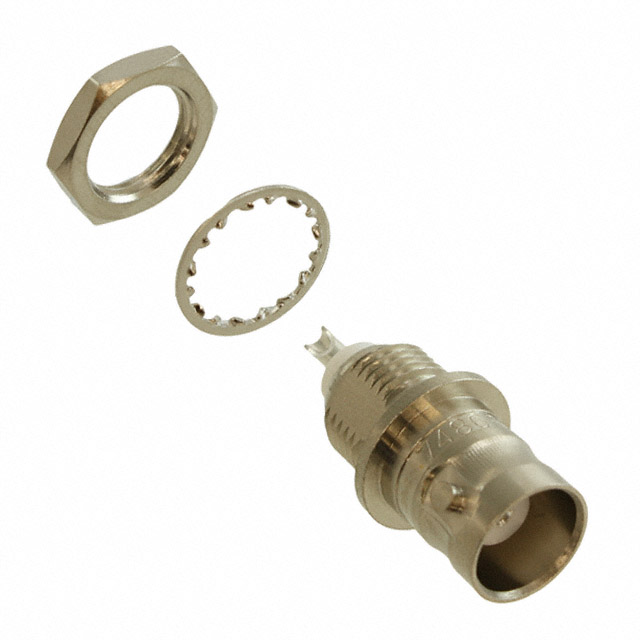

Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Impedance	Includes	Voltage Rating	Connector Type	Contact Termination	Features	Center Contact Material	Connector Style	Dielectric Material	Shield Termination	Mounting Feature	Mating Cycles	Number of Ports	Frequency - Max [Max]	Housing Color	Insertion Loss	Body Finish
Amphenol RF 31-236	Brass	Silver	-65 ░C	165 °C	Bayonet Lock	50 Ohms	1 Connector 1 Lockwasher 1 Nut	500 V	Female Socket Jack	Solder Cup	Extended Insulation	Beryllium Copper	BNC	Polytetrafluoroethylene (PTFE)	Solder	Bulkhead - Rear Side Nut	500	1	2 GHz	Silver	0.2 dB	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
