1241.2434.1

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 1A 42V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 1A 42V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.71

General part information

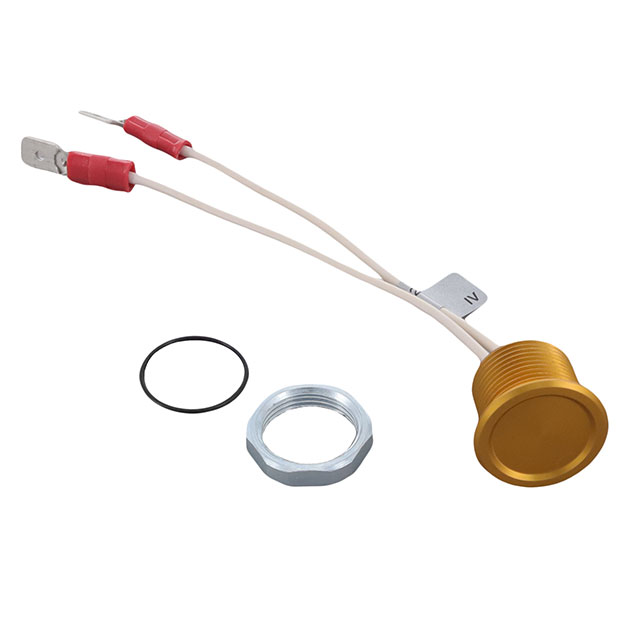

Pushbutton Switch SPST-NO Piezo Panel Mount, Front

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1241.2434.1	1241.2434 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Gold	Black, Gold
Electrical Life	20000000 Cycles	20000000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Type	Piezo	Piezo
Voltage Rating - AC	32 V	32 V
Voltage Rating - DC	48 V	48 V

PSE 16ASWF-00000000-IV-F

Part	Mounting Type	Ingress Protection	Voltage Rating - DC	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking	Termination Style	Voltage Rating - AC	Actuator Type	Switch Function	Circuit	Type
SCHURTER Inc. 1241.2434.7	Panel Mount, Front	IP67 - Dust Tight, Waterproof	48 V	Black	16.2 mm	-20 C	60 °C	20000000 Cycles	No Marking	Quick Connect - 0.250" (6.3mm)	32 V	Button, Flush, Round	Off-Mom	SPST-NO	Piezo
SCHURTER Inc. 1241.2434.1	Panel Mount, Front	IP67 - Dust Tight, Waterproof	48 V	Gold	16.2 mm	-20 C	60 °C	20000000 Cycles	No Marking	Quick Connect - 0.250" (6.3mm)	32 V	Button, Flush, Round	Off-Mom	SPST-NO	Piezo
