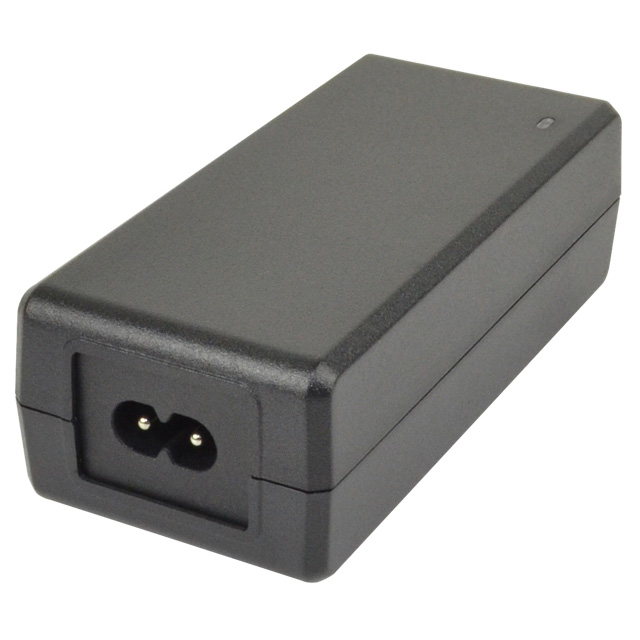

SDI50-12-UD-P5R

Active

CUI Inc.

PLUG-IN ADAPTER SINGLE-OUT 12V 4.2A 50W

Deep-Dive with AI

Search across all available documentation for this part.

SDI50-12-UD-P5R

Active

CUI Inc.

PLUG-IN ADAPTER SINGLE-OUT 12V 4.2A 50W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI50-12-UD-P5R

Applications	ITE (Commercial)
Approval Agency	FCC, EN, CSA, IEC, UL, PSE, CB Scheme
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	4.2 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [x]	2.1 mm
Output Connector [y]	5.5 mm
Output Connector [z]	9.5 mm
Polarization	Positive Center
Power (Watts)	50 W
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	C22.2 No. 60950-1, 55024, 62368-1, 60950-1, 61000-3-3, 55032 Class B, 61000-3-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	310.26 g
Weight	0.684 lb

SDI50-UD Series

Desktop AC Adapters 24V 2.1A 2.1 rt cn + 50W C8 EU cord VI

...

Part	Efficiency	Operating Temperature [Max]	Current - Output (Max) [Max]	Polarization	Voltage - Output	Input Type	Form	Approval Agency	Region Utilized	Input Connector	Cord Length	Cord Length	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Output Connector [diameter]	Output Connector [x]	Output Connector	No Load Power Consumption	No Load Power Consumption [Max]	Output Connector [z]	Output Connector [y]	Weight	Weight
CUI Inc. SDI50-9-U2-P5	CoC Tier 2 Level VI	40 °C	5 A	Positive Center	9 V	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	Europe	IEC 320-C14	1.5 m	59 in	45 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	100 mW
CUI Inc. SDI50-9-UD2-P6R	CoC Tier 2 Level VI	40 °C	5 A	Positive Center	9 V	Cord	Desktop (Class II)	CB Scheme CSA EN FCC IEC PSE UL	Europe	IEC 320-C8	1.5 m	59 in	45 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	100 mW
CUI Inc. SDI50-15-UD2-P6R	CoC Tier 2 Level VI	40 °C	3.34 A	Positive Center	15 VDC	Cord	Desktop (Class II)	CB Scheme CSA EN FCC IEC PSE UL	Europe	IEC 320-C8	1.5 m	59 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug		150 mW
CUI Inc. SDI50-9-UC-P5R	CoC Tier 2 Level VI	40 °C	5 A	Positive Center	9 V	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	North America	IEC 320-C14	1.5 m	59 in	45 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	100 mW
CUI Inc. SDI50-12-UD-P5R	CoC Tier 2 Level VI	40 °C	4.2 A	Positive Center	12 V	Cord	Desktop (Class II)	CB Scheme CSA EN FCC IEC PSE UL	International	IEC 320-C8	1.5 m	59 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1		2.1 mm	Barrel Plug R/A		150 mW	9.5 mm	5.5 mm	310.26 g	0.684 lb
CUI Inc. SDI50-15-UC-P5R	CoC Tier 2 Level VI	40 °C	3.34 A	Positive Center	15 VDC	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	North America	IEC 320-C14	1.5 m	59 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug		150 mW
CUI Inc. SDI50-24-U2-P5R	CoC Tier 2 Level VI	40 °C	2.1 A	Positive Center	24 V	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	Europe	IEC 320-C14	1.5 m	59 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug		150 mW
CUI Inc. SDI50-15-U-P5R	CoC Tier 2 Level VI	40 °C	3.34 A	Positive Center	15 VDC	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	International	IEC 320-C14	1.83 m	72 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1		2.1 mm	Barrel Plug R/A		150 mW	9.5 mm	5.5 mm	310.26 g	0.684 lb
CUI Inc. SDI50-24-UC-P6	CoC Tier 2 Level VI	40 °C	2.1 A	Positive Center	24 V	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	North America	IEC 320-C14	1.5 m	59 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug		150 mW			310.26 g	0.684 lb
CUI Inc. SDI50-15-U-P5	CoC Tier 2 Level VI	40 °C	3.34 A	Positive Center	15 VDC	Cord	Desktop (Class I)	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	International	IEC 320-C14	1.83 m	72 in	50 W	ITE (Commercial)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	90 VAC	264 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug		150 mW			310.26 g	0.684 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	240	$ 20.40

Description

General part information

SDI50-UD Series

Desktop AC Adapters 24V 2.1A 2.1 rt cn + 50W C8 EU cord VI
