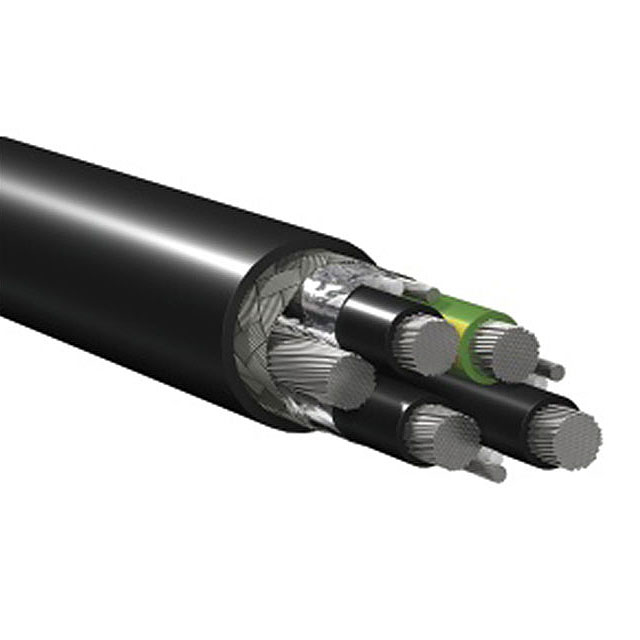

Specification	29503F 0101000

Cable Type	Conductor, Multi
Conductor Insulation	Polyolefin (PO)
Conductor Material	Tinned, Copper
Conductor Strand	7x37x34
Features	UV Resistant, Oil Resistant, Drain Wire
Jacket (Insulation) Diameter	0.716 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	0.073 in
Jacket Color	Black
Length	1000 ft
Length	Enter Number of Meters in Order Quantity
Number of Conductors	4
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Spool Size	1000 ft
Usage	Variable Frequency Drive (VFD), Motor Supply
Wire Gauge	10 AWG

29503F Series

Part	Conductor Strand	Number of Conductors	Cable Type	Operating Temperature (Max)	Operating Temperature (Min)	Jacket (Insulation) Diameter	Length	Shield Type	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Material	Usage	Features	Conductor Material	Conductor Insulation	Length	Wire Gauge	Shield Coverage	Spool Size	Shield Material
Belden Inc. 29503F 0101000	7x37x34	4	Conductor Multi	90 °C	-40 °C	0.716 in	1000 ft	Braid Foil	0.073 in	Black	Thermoplastic Elastomer (TPE)	Motor Supply Variable Frequency Drive (VFD)	Drain Wire Oil Resistant UV Resistant	Copper Tinned	Polyolefin (PO)	Enter Number of Meters in Order Quantity	10 AWG	100% 85%	1000 ft	Aluminum Copper Tinned
