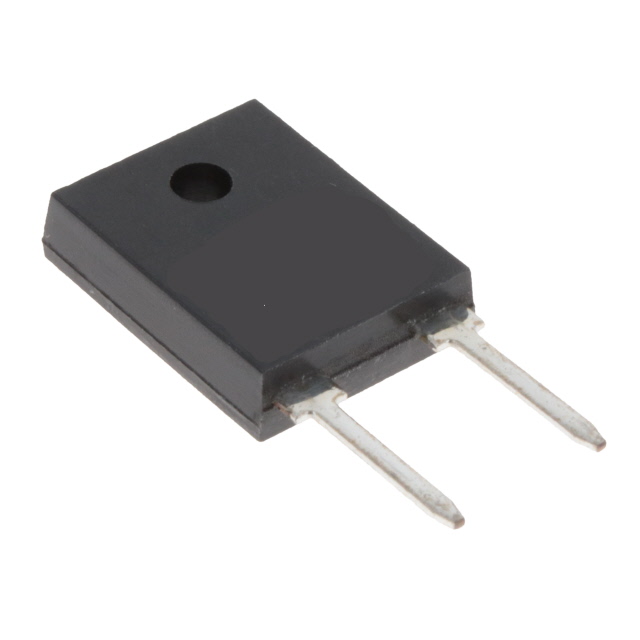

MPT30C16RJ

Active

TE Connectivity Passive Product

RES 16 OHM 5% 30W TO220-2

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 16 OHM 5% 30W TO220-2

Technical Specifications

Parameters and characteristics for this part

Specification	MPT30C16RJ

Composition	Thick Film
Features	Non-Inductive, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.81 in
Height - Seated (Max) [Max] [z]	20.58 mm
Number of Terminations	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Package / Case	TO-220-2
Power (Watts)	30 W
Resistance	16 Ohms
Size / Dimension [x]	0.41 "
Size / Dimension [x]	10.41 mm
Size / Dimension [y]	0.125 in
Size / Dimension [y]	3.18 mm
Supplier Device Package	TO-220-2
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

Part	Power (Watts)	Tolerance	Package / Case	Features	Composition	Number of Terminations	Supplier Device Package	Temperature Coefficient	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Passive Product MPT30C20RJ	30 W	5 %	TO-220-2	Moisture Resistant Non-Inductive	Thick Film	2	TO-220-2	50 ppm/°C	20 Ohms	-65 ░C	150 °C	0.41 "	10.41 mm	0.125 in	3.18 mm	0.81 in	20.58 mm
TE Connectivity Passive Product MPT30C16RJ	30 W	5 %	TO-220-2	Moisture Resistant Non-Inductive	Thick Film	2	TO-220-2	50 ppm/°C	16 Ohms	-65 ░C	150 °C	0.41 "	10.41 mm	0.125 in	3.18 mm	0.81 in	20.58 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.66

General part information

16 Ohms ±5% 30W Through Hole Resistor TO-220-2 Moisture Resistant, Non-Inductive Thick Film
