R2D225-AG02-10
Activeebm-papst Inc.

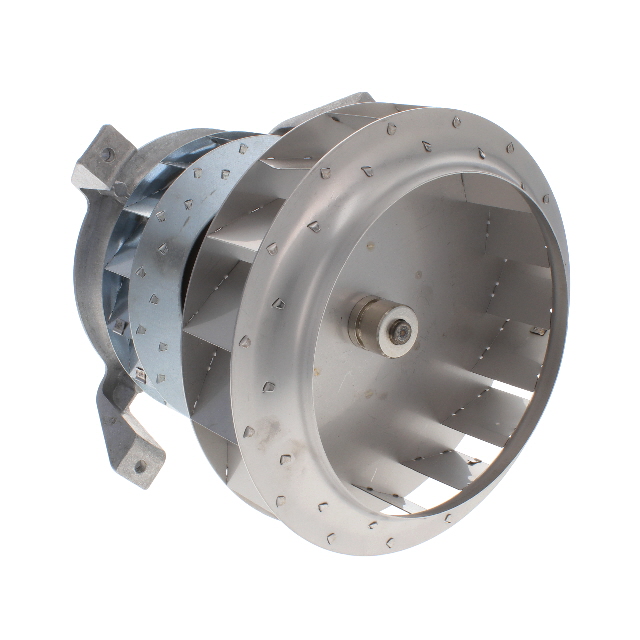

MOTORIZED IMPELLER
R2D225-AG02-10
Activeebm-papst Inc.
MOTORIZED IMPELLER
Description
General part information
R2D225 Series
Fan Blower, Centrifugal 230/400VAC Round - 250mm Dia Ball Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | R2D225-AG02-10 |
|---|---|
| Approval Agency | EAC, CE |
| Bearing Type | Ball |
| Current Rating (Maximum) | 0.67 A |
| Current Rating (Minimum) | 0.39 A |
| Fan Type | Blower, Centrifugal |
| Features | Dual Voltage |
| Ingress Protection | IP20 |
| Operating Temperature (Max) | 167 °F |
| Operating Temperature (Min) | -13 °F |
| Power (Watts) | 250 W |
| RPM | 3000 RPM |
| Size / Dimension Diameter | 250 mm |
| Size / Dimension Shape | Round |
| Termination | Terminal Block |
| Voltage - Rated (Option 1) | 230 VAC |
| Voltage - Rated (Option 2) | 400 VAC |
| Width | 229 mm |
