M2024TXG45

Obsolete

NKK Switches

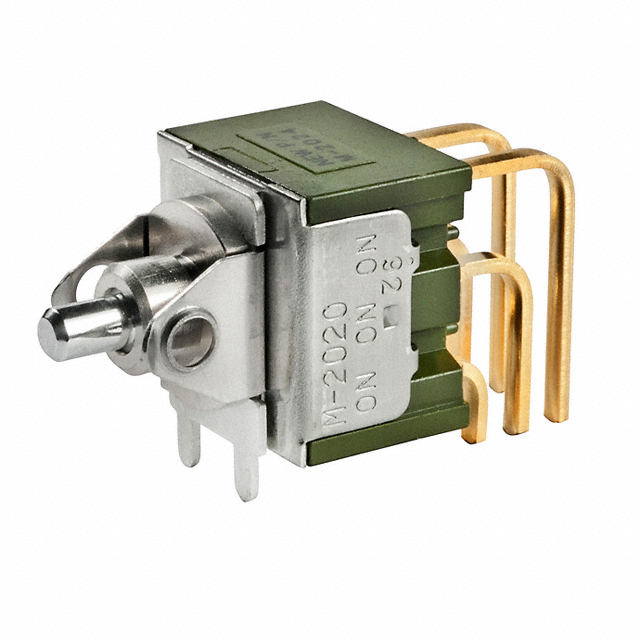

SWITCH ROCKER SP3T 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SP3T 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2024TXG45

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SP3T
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Approval Agency	Actuator Marking	Electrical Life	Voltage Rating - AC	Switch Function	Termination Style	Circuit	Actuator Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Features
NKK Switches M2024TXG13
NKK Switches M2024TXW13	CSA UL	Varies by Cap	25000 Steps	125 V	On-On-On	PC Pin	SP3T	Actuator Arm Cap Required	3 A 6 A	-30 ░C	85 °C	Through Hole	30 V	Jumper needed to achieve triple throw
NKK Switches M2024TXG45	CSA UL	Varies by Cap	50000 Cycles	28 V	On-On-On	PC Pin	SP3T	Actuator Arm Cap Required	0.4 VA	-30 ░C	85 °C	Right Angle Through Hole Vertical	28 V	Jumper needed to achieve triple throw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SP3T 0.4VA (AC/DC) 28 V Through Hole, Right Angle, Vertical
