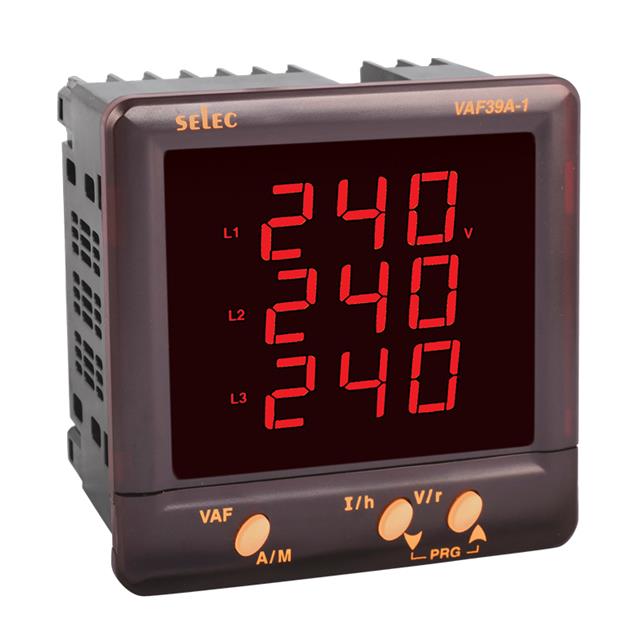

VAF39A-110V-CU-ROHS

Active

Selec Controls USA Inc.

DIGITAL VAF METER LED DISPLAY

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

DIGITAL VAF METER LED DISPLAY

Technical Specifications

Parameters and characteristics for this part

Specification	VAF39A-110V-CU-ROHS

Display Characters - Height [z]	14.73 mm
Display Characters - Height [z]	0.58 in
Display Type	LED - Red Characters
Ingress Protection	IP51 - Dust Protected
Measuring Type	Current (3-Phase), Voltage
Number of Characters Per Row	3
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	91.5 mm
Panel Cutout Dimensions [y]	91.5 mm
Termination Style	Screw Terminal
Type	Ammeter, Volmeter
Voltage - Supply	110 VAC/DC

DIGITAL VAF METER LED DISPLAY

Part	Display Characters - Height [z]	Display Characters - Height [z]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Termination Style	Display Type	Type	Measuring Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage - Supply	Number of Characters Per Row
Selec Controls USA Inc. VAF39A-110V-CU-ROHS	14.73 mm	0.58 in	91.5 mm	91.5 mm	IP51 - Dust Protected	Screw Terminal	LED - Red Characters	Ammeter, Volmeter	Current (3-Phase), Voltage	55 °C	-10 °C	110 VAC/DC	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ammeter, Voltmeter LED - Red Characters Display Panel Mount

Technical documentation and resources

No documents available
