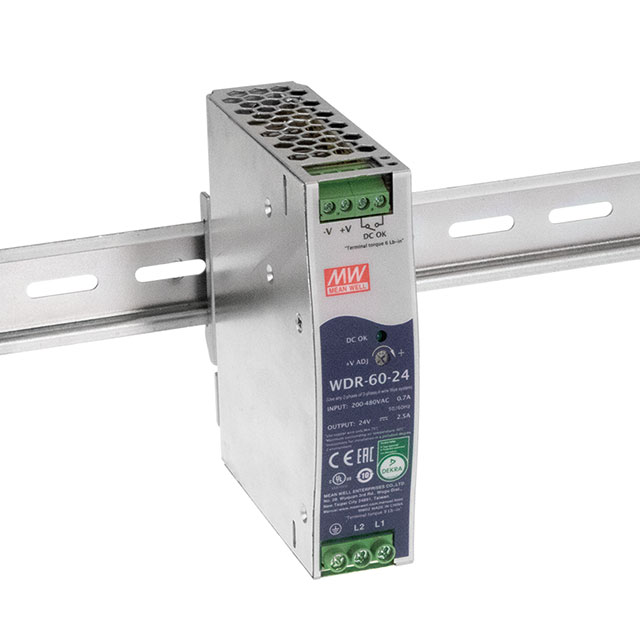

WDR-60 Series

Part	Minimum Load Required	Approval Agency	Number of Outputs	DC Voltage - Input (Min)	Power (Watts)	Features	Voltage - Output 1	Voltage - Isolation	Input Type	Current - Output (Max)	AC Voltage - Input (Min)	AC Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	DC Voltage - Input (Max)	Applications	Efficiency	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length
MEAN WELL USA Inc. WDR-60-48	No	CE EAC TUV UL	1	254 V	60 W	Adjustable Output	48 V	4.7 kV	AC AC or DC DC	1.25 A	180 VAC	550 VAC	85 °C	-30 °C	780 V	Laboratory	90.5 %	1.26 in	4.93 in	4.02 in
MEAN WELL USA Inc. WDR-60-24	No	CE EAC TUV UL	1	254 V	60 W	Adjustable Output	24 V	4.7 kV	AC AC or DC DC	2.5 A	180 VAC	550 VAC	85 °C	-30 °C	780 V	Laboratory	89 %	1.26 in	4.93 in	4.02 in
MEAN WELL USA Inc. WDR-60-5	No	CE EAC TUV UL	1	254 V	50 W	Adjustable Output	5 V	4.7 kV	AC AC or DC DC	10 A	180 VAC	550 VAC	85 °C	-30 °C	780 V	Laboratory	83.5 %	1.26 in	4.93 in	4.02 in
MEAN WELL USA Inc. WDR-60-12	No	CE EAC TUV UL	1	254 V	60 W	Adjustable Output	12 V	4.7 kV	AC AC or DC DC	5 A	180 VAC	550 VAC	85 °C	-30 °C	780 V	Laboratory	86.5 %	1.26 in	4.93 in	4.02 in
