General part information

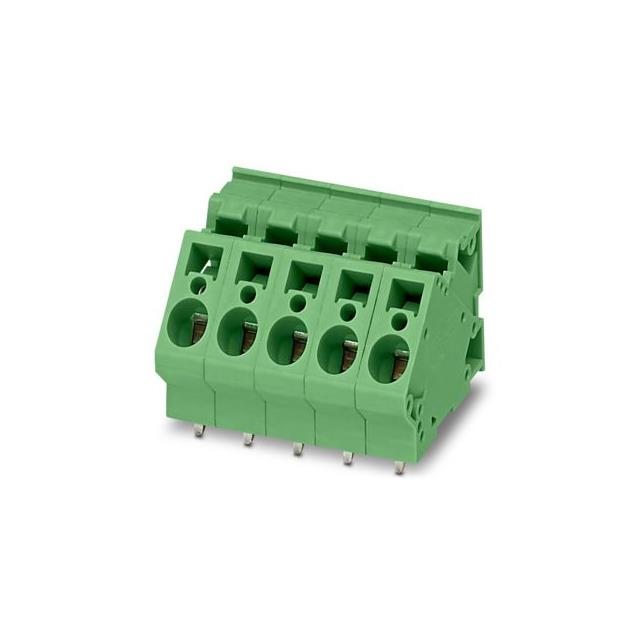

Fixed Terminal Blocks ZFKDS 4-7.5 GNYE
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1928314 |
|---|---|
| Color | Green, Yellow |
| Current | 30 A |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 10 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Fixed Terminal Blocks ZFKDS 4-7.5 GNYE
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Current | Mating Orientation | Mating Orientation | Wire Termination | Positions Per Level | Voltage | Mounting Type | Number of Levels | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1928314 | 24 AWG | 10 AWG | 30 A | 135 ° | 45 ° | Screwless - Spring Cage, Tension Clamp | 1 | 300 V | Through Hole | 1 | Green, Yellow |
