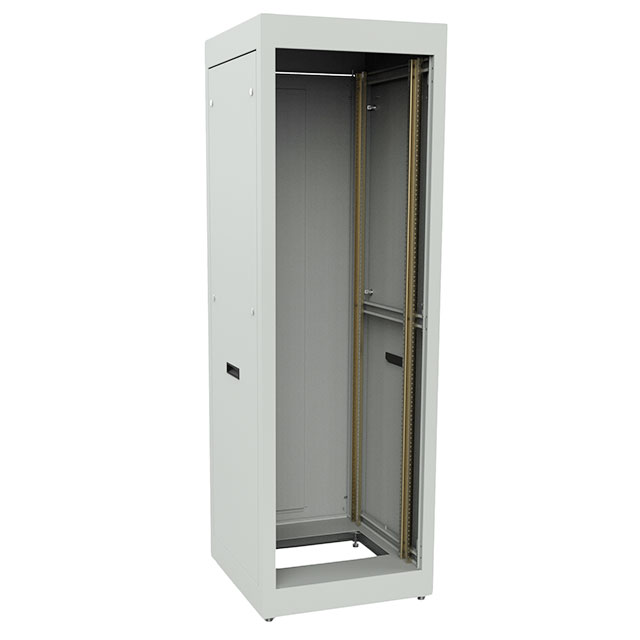

C2RR247031DBK1

Active

Hammond Manufacturing

RACK ASSEMBLED

Search across all available documentation for this part.

Active

Hammond Manufacturing

RACK ASSEMBLED

Technical Specifications

Parameters and characteristics for this part

Specification	C2RR247031DBK1

Color	Black
Dimensions - Overall [x]	31.5 in
Dimensions - Overall [x]	800.1 mm
Dimensions - Overall [y]	711.2 mm
Dimensions - Overall [y]	28 "
Dimensions - Overall [z]	1963.67 mm
Dimensions - Overall [z]	77.31 in
Dimensions - Panel [x]	757.94 mm
Dimensions - Panel [x]	29.84 in
Dimensions - Panel [y]	24.11 "
Dimensions - Panel [y]	612.39 mm
Dimensions - Panel [z]	1779.53 mm
Dimensions - Panel [z]	70.06 in
Door	Steel
Features	Removable Sides
Material	Metal, Steel
Mounting Rails	Two Pair
Number of Units	40 U
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Style	Top, Bottom, Enclosed, Sides
Type	Cabinet Rack
Ventilation	Door, Top
Weight	346 lbs
Weight	156.9 kg

Part	Dimensions - Panel [x]	Dimensions - Panel [z]	Dimensions - Panel [y]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [z]	Color	Shipping Info	Mounting Rails	Weight	Weight	Number of Units	Features	Style	Material	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [z]	Type	Door	Ventilation
Hammond Manufacturing C2RR247031DBK1	757.94 mm	1779.53 mm	24.11 "	612.39 mm	29.84 in	70.06 in	Black	Drop shipped from the Manufacturer's Warehouse	Two Pair	346 lbs	156.9 kg	40 U	Removable Sides	Bottom Enclosed Sides Top	Metal Steel	31.5 in	800.1 mm	711.2 mm	28 "	1963.67 mm	77.31 in	Cabinet Rack	Steel	Door Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Metal, Steel Cabinet Rack Enclosed, Bottom, Sides, Top 31.500" L x 28.000" W x 77.310" H (800.10mm x 711.20mm x 1963.67mm) Black
