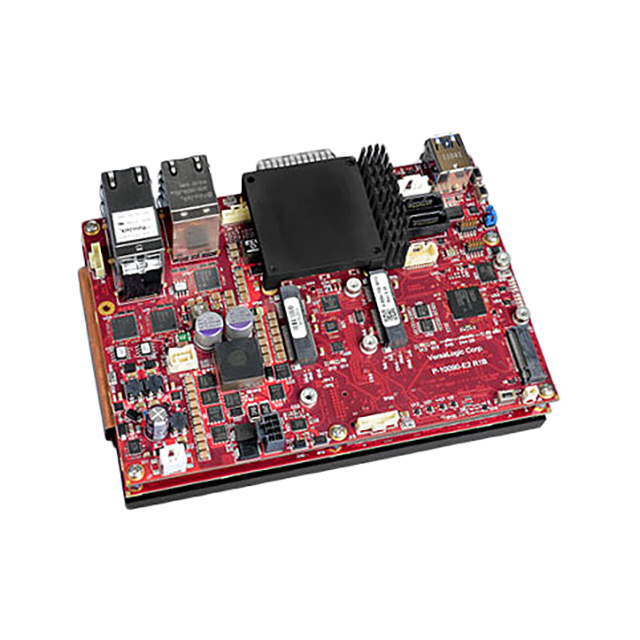

VL-ESU-5070ECP-64X

Active

VersaLogic Corporation

SBC 2.0GHZ 16CORE 128GB/64GB RAM

Search across all available documentation for this part.

Active

VersaLogic Corporation

SBC 2.0GHZ 16CORE 128GB/64GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

SBC 2.0GHZ 16CORE 128GB/64GB RAM

Part	Expansion Site/Bus	USB	Power (Watts)	Number of Cores	Speed	Storage Interface	Digital I/O Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Core Processor	Cooling Type	RS-232 (422, 485)	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	RAM Capacity/Installed	Ethernet	RAM Capacity/Installed
VersaLogic Corporation VL-ESU-5070ECP-64X	M.2, mPCIe	USB 3.0 (2)	34.7 W	16	2 GHz	M.2, mSATA, SATA	14	154.99 mm	4.331 in	6.102 in	110 mm	Intel Atom C3958	Heat Plate	2	85 °C	-40 °C	COM Express	64 GB, 128 GB	10
VersaLogic Corporation VL-ESU-5070ECP-128X	M.2, mPCIe	USB 3.0 (2)	37.6 W	16	2 GHz	M.2, mSATA, SATA	14	154.99 mm	4.331 in	6.102 in	110 mm	Intel Atom C3958	Heat Plate	2	85 °C	-40 °C	COM Express		10	128GB
VersaLogic Corporation VL-ESU-5070ECP-00	M.2, mPCIe	USB 3.0 (2)		16	2 GHz	M.2, mSATA, SATA	14	154.99 mm	4.331 in	6.102 in	110 mm	Intel Atom C3958	Heat Plate	2	85 °C	-40 °C	COM Express	64 GB	10	-
VersaLogic Corporation VL-ESU-5070ECP-32X	M.2, mPCIe	USB 3.0 (2)	34.9 W	16	2 GHz	M.2, mSATA, SATA	14	154.99 mm	4.331 in	6.102 in	110 mm	Intel Atom C3958	Heat Plate	2	85 °C	-40 °C	COM Express	32 GB, 96 GB	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4563.00

General part information

Single Board Computer 2GHz 16 Core 128GB/64GB RAM Intel Atom C3958
