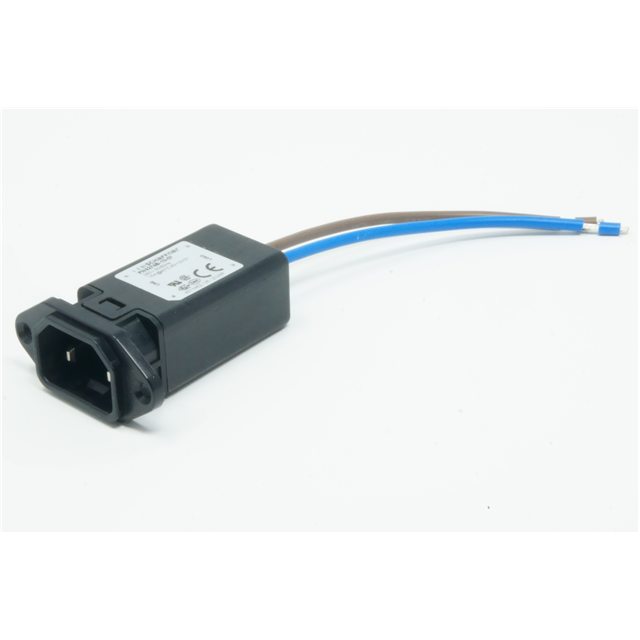

FN9274B-6-07

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 6A 3.2MH 0.22UF WIRE LEADS FRONT MNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 6A 3.2MH 0.22UF WIRE LEADS FRONT MNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN9274B-6-07

Accomodates a Fuse	False
Approval Agency	UL, ENEC, CQC, CSA, CE
Connector Style	IEC 320-C18
Connector Type	Male Blades, Receptacle
Current Rating - Filter	6 A
Features	Front Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	2
Termination	Wire Leads

AC Power Entry Modules 15A 0.4mH 0.22uF Fast-on Snap-in Med

Part	Connector Type	Mounting Type	Material Flammability Rating	Filter Type	Termination	Termination	Termination	Number of Positions	Features	Approval Agency	Current Rating - Filter	Ingress Protection	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
TE Connectivity Raychem Cable Protection FN9274B-6-05	Male Blades Receptacle	Flange Panel Mount	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	0.25 in	6.3 mm	Quick Connect	2	Front Side Mount	CE CQC CSA ENEC UL	6 A	IP40	IEC 320-C18
TE Connectivity Raychem Cable Protection FN9274B-6-07	Male Blades Receptacle	Flange Panel Mount	UL94 V-0	Filtered (EMI RFI) - Commercial Medical			Wire Leads	2	Front Side Mount	CE CQC CSA ENEC UL	6 A	IP40	IEC 320-C18
TE Connectivity Raychem Cable Protection FN9274S1B-1-07	Male Blades Receptacle	Panel Mount Snap-In	UL94 V-0	Filtered (EMI RFI) - Commercial Medical			Wire Leads	2		CE CQC CSA ENEC UL	1 A	IP40	IEC 320-C18	28.4 mm	23.2 mm	2.5 mm	1 mm	0.098 in	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules 15A 0.4mH 0.22uF Fast-on Snap-in Med
