98203.2

Active

Conta-Clip, Inc.

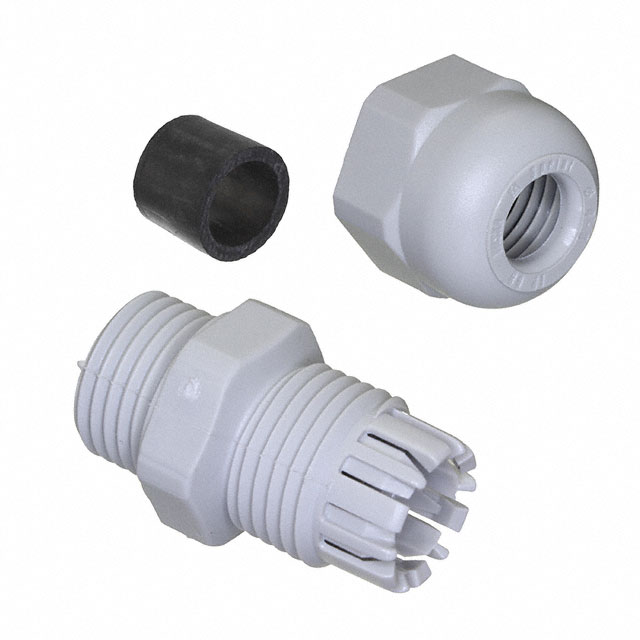

CABLE GLAND 4-8MM PG9 POLYAMIDE

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

CABLE GLAND 4-8MM PG9 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	98203.2

Color	Light Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Panel Hole Size	15.2 mm
Panel Hole Size	0.6 in
Thread Length	0.35 "
Thread Length	8.89 mm
Thread Size	PG9
Type	Cable Gland

Part	Color	Thread Size	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Ingress Protection
Conta-Clip, Inc. 98203.2	Light Gray	PG9	15.2 mm	0.6 in	0.35 "	8.89 mm	Polyamide (PA) Nylon	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG9 Light Gray

Technical documentation and resources

No documents available
