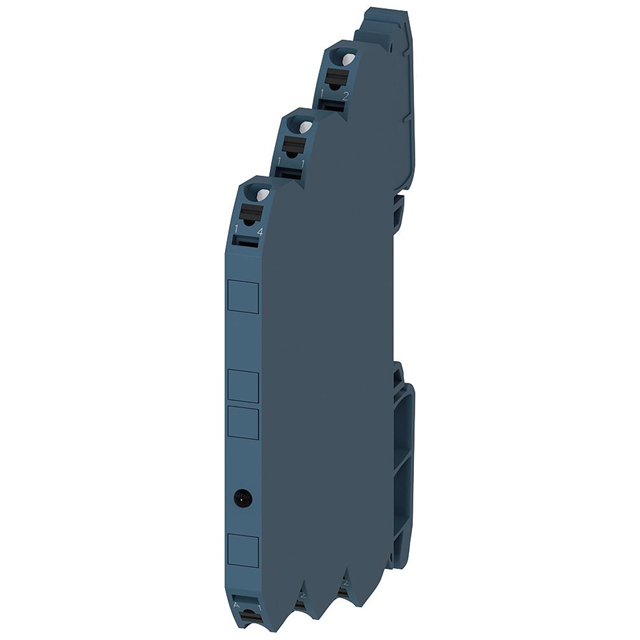

Specification	3RQ30382AB01

Approval Agency	EAC, CSA, CCC, UL
Coil Type	Non Latching
Coil Voltage	24 VDC
Coil Voltage (Type)	AC, DC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	3 A
Features	Lighted Indicator
Load - Max Switching (Apparent Power)	750 VA
Mounting Type	DIN Rail
Operate Time	12 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Relay Type	General Purpose
Release Time	14 ms
Switching Voltage AC (Max)	250 VAC
Termination Style	Spring Terminal

3RQ303 Series

Part	Features	Contact Form	Load - Max Switching (Apparent Power)	Contact Rating (Current)	Mounting Type	Release Time	Coil Type	Switching Voltage AC (Max)	Approval Agency	Operate Time	Relay Type	Coil Voltage	Coil Voltage (Type)	Contact Material	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)
Siemens 3RQ30382AB00	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	14 ms	Non Latching	250 VAC	CCC CSA EAC UL	12 ms	General Purpose	24 VDC	AC DC	Silver Tin Oxide (AgSnO)	Spring Terminal	-25 °C	60 °C
Siemens 3RQ30381AB00	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	14 ms	Non Latching	250 VAC	CCC CSA EAC UL	12 ms	General Purpose	24 VDC	AC DC	Silver Tin Oxide (AgSnO)	Screw Terminal	-25 °C	60 °C
Siemens 3RQ30381AE00	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	17 ms	Non Latching	250 VAC	CCC CSA EAC UL	8 ms	General Purpose	115 VAC	AC DC	Silver Tin Oxide (AgSnO)	Screw Terminal	-25 °C	60 °C
Siemens 3RQ30381AB01	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	14 ms	Non Latching	250 VAC	CCC CSA EAC UL	12 ms	General Purpose	24 VDC	AC DC	Silver Tin Oxide (AgSnO)	Screw Terminal	-25 °C	60 °C
Siemens 3RQ30382AB01	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	14 ms	Non Latching	250 VAC	CCC CSA EAC UL	12 ms	General Purpose	24 VDC	AC DC	Silver Tin Oxide (AgSnO)	Spring Terminal	-25 °C	60 °C
Siemens 3RQ30381AE01	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	12 ms	Non Latching	250 VAC	CCC CSA EAC UL	12 ms	General Purpose	115 VAC	AC DC	Silver Tin Oxide (AgSnO)	Screw Terminal	-25 °C	60 °C
Siemens 3RQ30382AE01	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	17 ms	Non Latching	250 VAC	CCC CSA EAC UL	8 ms	General Purpose	115 VAC	AC DC	Silver Tin Oxide (AgSnO)	Spring Terminal	-25 °C	60 °C
Siemens 3RQ30382AE00	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	17 ms	Non Latching	250 VAC	CCC CSA EAC UL	8 ms	General Purpose	115 VAC	AC DC	Silver Tin Oxide (AgSnO)	Spring Terminal	-25 °C	60 °C
Siemens 3RQ30381AF00	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	19 ms	Non Latching	250 VAC	CCC CSA EAC UL	9 ms	General Purpose	230 VDC	AC DC	Silver Tin Oxide (AgSnO)	Screw Terminal	-25 °C	60 °C
Siemens 3RQ30381AF01	Lighted Indicator	1 C Form SPDT	750 VA	3 A	DIN Rail	19 ms	Non Latching	250 VAC	CCC CSA EAC UL	9 ms	General Purpose	230 VDC	AC DC	Silver Tin Oxide (AgSnO)	Screw Terminal	-25 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3RQ30382AB01 | Datasheet

3RQ Coupling Catalog
