PM1210-4R7J-RC

Active

Bourns Inc.

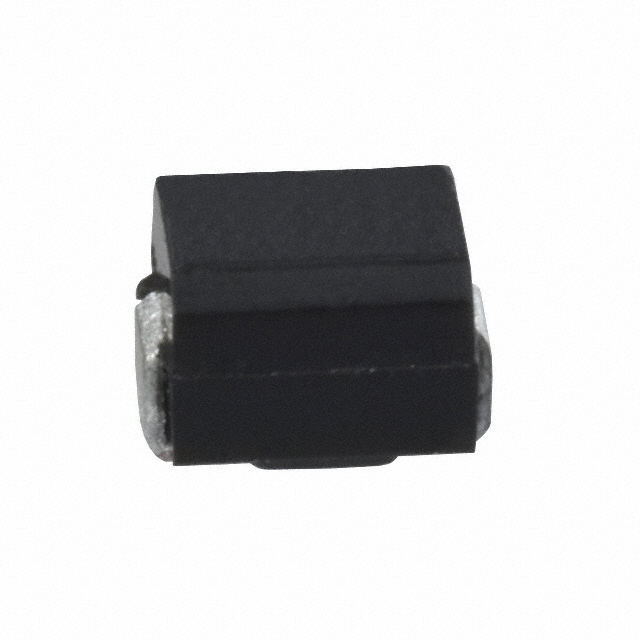

FIXED IND 4.7UH 220MA 1.5OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM1210-4R7J-RC

Active

Bourns Inc.

FIXED IND 4.7UH 220MA 1.5OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM1210-4R7J-RC

Current Rating (Amps)	0.22 A
DC Resistance (DCR) [Max]	1.5 Ohm
Frequency - Self Resonant	55 MHz
Height - Seated (Max) [Max] [z]	0.087 in
Height - Seated (Max) [Max] [z]	2.2 mm
Inductance	4.7 ÁH
Inductance Frequency - Test	7.96 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	1210
Package / Case	3225 Metric
Q @ Freq	7.96 MHz, 30
Shielding	Unshielded
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	1210
Tolerance	5 %
Type	Wirewound, Drum Core

PM1210 Series

Part	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Current Rating (Amps)	Type	Frequency - Self Resonant	Tolerance	Supplier Device Package	Q @ Freq	Inductance	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)
Bourns Inc. PM1210-4R7J-RC	7.96 MHz	1.5 Ohm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	0.22 A	Drum Core Wirewound	55 MHz	5 %	1210	7.96 MHz 30	4.7 ÁH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-181J-RC	796 kHz	17 Ohm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	50 mA	Drum Core Wirewound	7 MHz	5 %	1210	20 796 kHz	180 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-151J	796 kHz		Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	0.065 A	Drum Core Wirewound	8 MHz	5 %	1210	20 796 kHz	150 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm	15 Ohm
Bourns Inc. PM1210-270J	2.52 MHz		Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	80 mA	Drum Core Wirewound	20 MHz	5 %	1210	2.52 MHz 30	27 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm	5 Ohm
Bourns Inc. PM1210-R68J	25.2 MHz		Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	450 mA	Drum Core Wirewound	160 MHz	5 %	1210	25.2 MHz 28	0.68 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-100J-RC	2.52 MHz	2.1 Ohm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	140 mA	Drum Core Wirewound	36 MHz	5 %	1210	2.52 MHz 30	10 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-101J-RC	796 kHz	10 Ohm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	60 mA	Drum Core Wirewound	10 MHz	5 %	1210	20 796 kHz	100 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-2R7J-RC	7.96 MHz	1.1 Ohm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	0.18 A	Drum Core Wirewound	75 MHz	5 %		7.96 MHz 30	2.7 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-2R2J-RC	7.96 MHz	950 mOhm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite		Drum Core Wirewound	80 MHz	5 %	1210	7.96 MHz 30	2.2 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm
Bourns Inc. PM1210-6R8J	7.96 MHz	2 Ohm	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	Ferrite	0.18 A	Drum Core Wirewound	43 MHz	5 %	1210	7.96 MHz 30	6.8 µH	1210	3225 Metric	125 °C	-40 °C	Unshielded	0.087 in	2.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
		10	$ 0.30
		25	$ 0.28
		50	$ 0.26
		100	$ 0.23
		250	$ 0.22
		500	$ 0.20
		1000	$ 0.16
	Digi-Reel®	1	$ 0.37
		10	$ 0.30
		25	$ 0.28
		50	$ 0.26
		100	$ 0.23
		250	$ 0.22
		500	$ 0.20
		1000	$ 0.16
	Tape & Reel (TR)	2000	$ 0.16
		4000	$ 0.15
		6000	$ 0.14
		10000	$ 0.14
		50000	$ 0.13

Description

General part information

PM1210 Series

4.7 µH Unshielded Drum Core, Wirewound Inductor 220 mA 1.5Ohm Max 1210 (3225 Metric)
