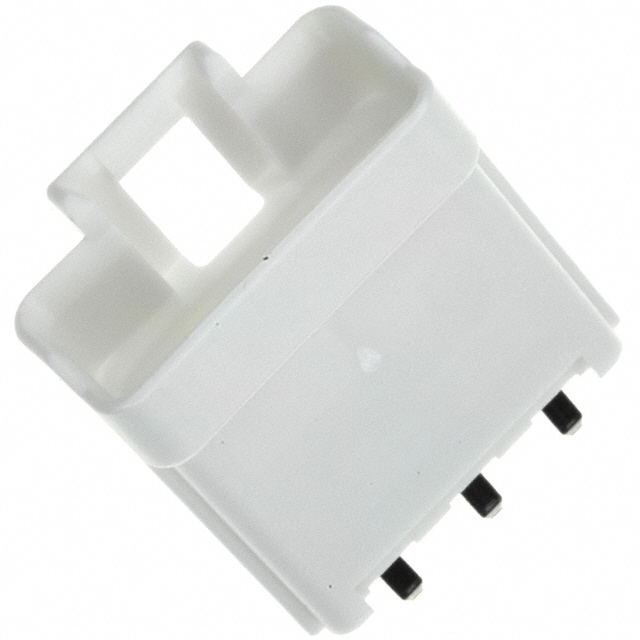

Specification	B03B-WPJSS-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Natural
Insulation Height	0.843 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Height	25.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	300 VAC/DC

B03B-WPJ Series

Part	Insulation Color	Pitch - Mating	Contact Length - Post	Current Rating	Style	Mounting Type	Insulation Material	Insulation Height	Termination	Contact Finish - Mating	Voltage Rating	Ingress Protection	Shrouding	Contact Finish - Post	Number of Rows	Contact Material	Features	Fastening Type	Number of Positions	Number of Positions Loaded	Contact Type	Material Flammability Rating	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Mated Stacking Height
JST Sales America Inc. B03B-WPJES-3	Blue	0.197 in	0.13 in	7 A	Board Cable/Wire	Through Hole	Glass Filled Polybutylene Terephthalate (PBT)	0.843 in	Solder	Tin	300 VAC/DC	Waterproof	Shrouded - 4 Wall	Tin	1	Copper Alloy	Board Guide	Latch Holder	3	All	Male Pin	UL94 V-0	Header	85 °C	-25 °C	Square	25.3 mm
JST Sales America Inc. B03B-WPJSS-1	Natural	0.197 in	0.13 in	7 A	Board Cable/Wire	Through Hole	Glass Filled Polybutylene Terephthalate (PBT)	0.843 in	Solder	Tin	300 VAC/DC	Waterproof	Shrouded - 4 Wall	Tin	1	Copper Alloy	Board Guide	Latch Holder	3	All	Male Pin	UL94 V-0	Header	85 °C	-25 °C	Square	25.3 mm
JST Sales America Inc. B03B-WPJRS-2	Red	0.197 in	0.13 in	7 A	Board Cable/Wire	Through Hole	Glass Filled Polybutylene Terephthalate (PBT)	0.843 in	Solder	Tin	300 VAC/DC	Waterproof	Shrouded - 4 Wall	Tin	1	Copper Alloy	Board Guide	Latch Holder	3	All	Male Pin	UL94 V-0	Header	85 °C	-25 °C	Square	25.3 mm
