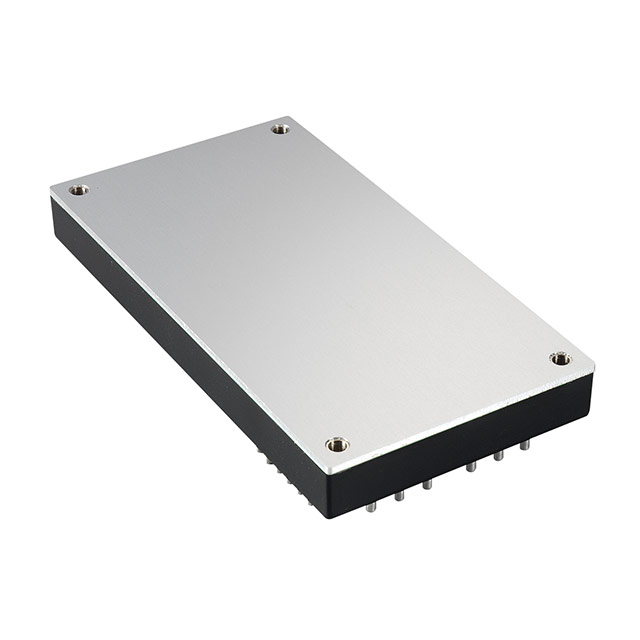

QSB60048S32P

Active

XP POWER

DC DC CONVERTER 32V 608W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 32V 608W

Technical Specifications

Parameters and characteristics for this part

Specification	QSB60048S32P

Applications	ITE (Commercial)
Current - Output (Max) [Max]	19 A
Efficiency	92 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Supplier Device Package	Full Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	32 V

Part	Type	Number of Outputs	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Supplier Device Package	Features	Efficiency
XP POWER QSB60048S32P	Isolated Module	1	32 V	ITE (Commercial)	36 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	-40 °C	100 °C	19 A	Through Hole	75 V	1.5 kV	Full Brick	Full Brick	OCP OTP OVP Remote On/Off SCP UVLO	92 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 32V 19A 36V - 75V Input
