EW0262520000G

Active

AMPHENOL ANYTEK

TERM BLOCK HDR 2POS 10.16MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EW0262520000G

Active

AMPHENOL ANYTEK

TERM BLOCK HDR 2POS 10.16MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EW0262520000G	EW Series

Color	Green	Green
Contact Material	Copper	Copper
Contact Mating Finish	Gold	Gold
Contact Tail Length	0.157 in	0.157 in
Contact Tail Length	4 mm	4 mm
Current - UL	55 A	55 A
Features	Mating Flange	Mating Flange
Header Orientation	90°, Right Angle	Vertical, 90°, Right Angle, Right Angle, Under Board
Header Orientation	-	90 °
Housing Material	Thermoplastic	Thermoplastic
Insulation Height	-	1.339 "
Insulation Height	-	34 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2 - 12
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	10.16 mm	10.16 mm
Pitch [x]	0.4 in	0.4 in
Positions Per Level	2	2 - 12
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

EW Series

TERM BLOCK HDR 11POS 10.16MM

Part	Termination Style	Material Flammability Rating	Mounting Type	Number of Levels	Color	Type	Current - UL	Housing Material	Voltage - UL	Pitch [x]	Pitch [x]	Contact Material	Header Orientation	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Height	Insulation Height	Header Orientation	Features
AMPHENOL ANYTEK EW1161500000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Vertical	0.157 in	4 mm	Gold	11	-40 °C	115 °C	11	1.339 "	34 mm
AMPHENOL ANYTEK EW0661520000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	90°, Right Angle	0.157 in	4 mm	Gold	6	-40 °C	115 °C	6
AMPHENOL ANYTEK EW0661500000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Vertical	0.157 in	4 mm	Gold	6	-40 °C	115 °C	6	1.339 "	34 mm
AMPHENOL ANYTEK EW1061510000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Right Angle, Under Board	0.157 in	4 mm	Gold	10	-40 °C	115 °C	10			90 °
AMPHENOL ANYTEK EW0262520000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	90°, Right Angle	0.157 in	4 mm	Gold	2	-40 °C	115 °C	2				Mating Flange
AMPHENOL ANYTEK EW0361500000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Vertical	0.157 in	4 mm	Gold	3	-40 °C	115 °C		1.339 "	34 mm
AMPHENOL ANYTEK EW1262510000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Right Angle, Under Board	0.157 in	4 mm	Gold	12	-40 °C	115 °C	12			90 °	Mating Flange
AMPHENOL ANYTEK EW0662500000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Vertical	0.157 in	4 mm	Gold	6	-40 °C	115 °C	6	1.339 "	34 mm		Mating Flange
AMPHENOL ANYTEK EW0461510000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Right Angle, Under Board	0.157 in	4 mm	Gold	4	-40 °C	115 °C	4			90 °
AMPHENOL ANYTEK EW1162500000G	Solder	UL94 V-0	Through Hole	1	Green	Header, Male Pins, Shrouded (4 Side)	55 A	Thermoplastic	300 V	10.16 mm	0.4 in	Copper	Vertical	0.157 in	4 mm	Gold	11	-40 °C	115 °C	11	1.339 "	34 mm		Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.57
		10	$ 2.55
		25	$ 2.23
		50	$ 2.02
		100	$ 1.86
		250	$ 1.68
		500	$ 1.58
		2000	$ 1.44
		6000	$ 1.36

Description

General part information

EW Series

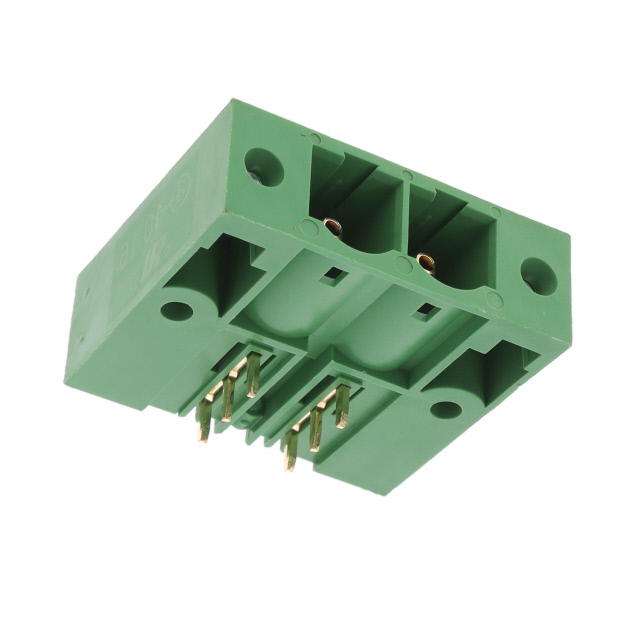

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.400" (10.16mm) 90°, Right Angle Through Hole
