T1359320121-000

Active

TE Connectivity Raychem Cable Protection

H32A-TSB-PG21

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

H32A-TSB-PG21

Technical Specifications

Parameters and characteristics for this part

Specification	T1359320121-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H32A
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	PG21

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Ingress Protection	Housing Material	Size	Housing Finish	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Style	Thread Size	Connector Type	Lock Location
TE Connectivity Raychem Cable Protection T1359320121-000	125 °C	-40 °C	Gray	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	H32A	Powder Coated	82 mm	76 mm	3.228 in	2.992 in	56 mm	2.205 in	Side Entry	PG21	Hood	Locking Clip (2) on Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 21.70

General part information

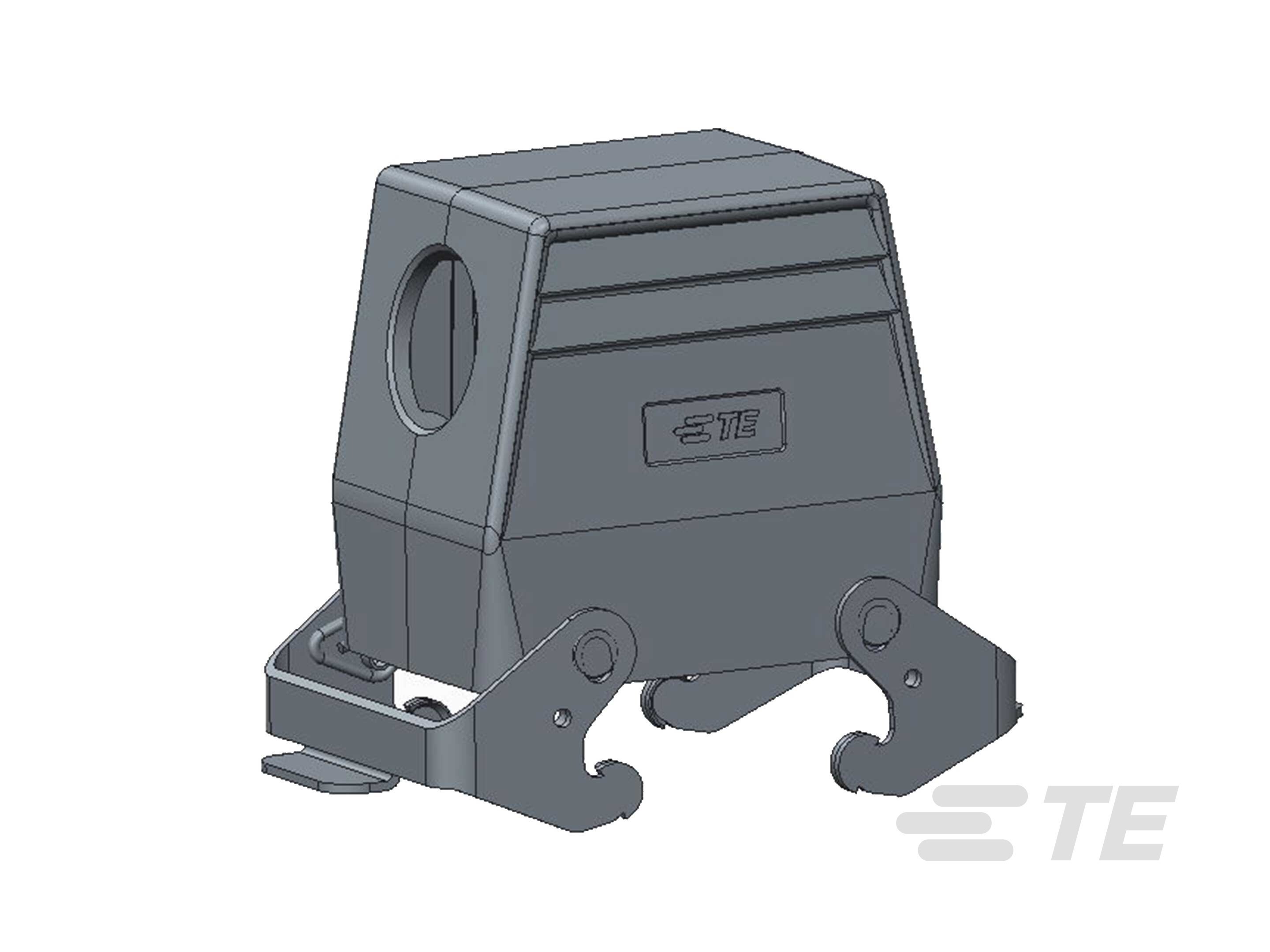

Hood Connector Side Entry PG21 H32A IP65 - Dust Tight, Water Resistant
