17982-6PG-300

Active

Conxall/Switchcraft

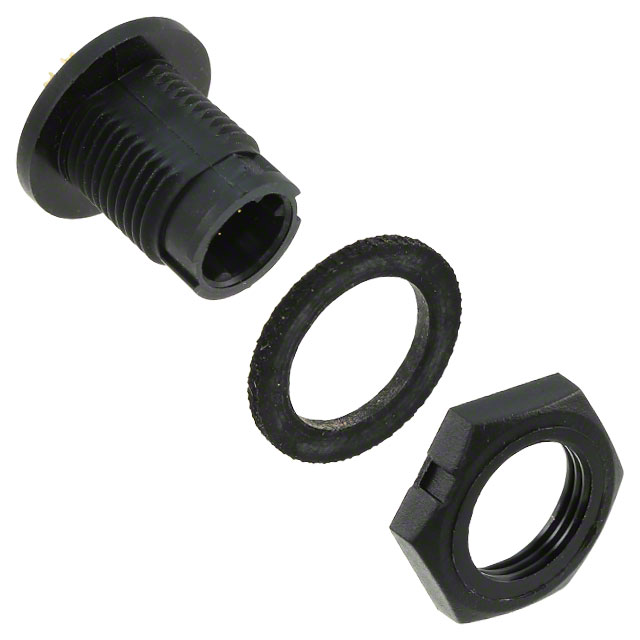

CONN RCPT MALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17982-6PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT MALE 6P GOLD SLDR CUP

Part	Mounting Feature	Orientation	Fastening Type	Shielding	Ingress Protection	Color	Applications	Number of Positions	Contact Finish - Mating	Primary Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Material Flammability Rating	Current Rating (Amps)
Conxall/Switchcraft 17982-6PG-300	Bulkhead - Front Side Nut	A	Bayonet Lock	Unshielded	IP67 - Dust Tight, Waterproof	Black	Data, Industrial, Instrumentation, Medical	6	Gold	Plastic	Copper Alloy	85 °C	-40 °C	600 VAC	Male Pins, Receptacle	UL94 HB	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
