HRS-2B-18-GA
ActiveAdam Tech
RECEPTACLE STRIP, 1.27MM, VERTIC
Deep-Dive with AI
Search across all available documentation for this part.
HRS-2B-18-GA
ActiveAdam Tech
RECEPTACLE STRIP, 1.27MM, VERTIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRS-2B-18-GA |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.6 mm |
| Insulation Height | 0.181 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 250 VAC |
HRS-2B Series
| Part | Number of Positions | Contact Finish Thickness - Post | Termination | Connector Type | Fastening Type | Insulation Height | Insulation Height | Contact Type | Number of Positions Loaded | Number of Rows | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Color | Material Flammability Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mounting Type | Insulation Material | Contact Material | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Contact Finish Thickness - Mating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 12 | Flash | Solder | Receptacle | Push-Pull | 4.6 mm | 0.181 in | Forked | All | 2 | Gold | 0.05 in | 1.27 mm | Black | UL94 V-0 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 250 VAC | Through Hole | Thermoplastic | Phosphor Bronze | Rectangular | 0.118 in | 3 mm | Gold | Flash | General Purpose |
Adam Tech | 18 | Flash | Solder | Receptacle | Push-Pull | 4.6 mm | 0.181 in | Forked | All | 2 | Gold | 0.05 in | 1.27 mm | Black | UL94 V-0 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 250 VAC | Through Hole | Thermoplastic | Phosphor Bronze | Rectangular | 0.118 in | 3 mm | Gold | Flash | General Purpose |
Adam Tech | 10 | Flash | Solder | Receptacle | Push-Pull | 4.6 mm | 0.181 in | Forked | All | 2 | Gold | 0.05 in | 1.27 mm | Black | UL94 V-0 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 250 VAC | Through Hole | Thermoplastic | Phosphor Bronze | Rectangular | 0.118 in | 3 mm | Gold | Flash | General Purpose |
Adam Tech | 14 | Flash | Solder | Receptacle | Push-Pull | 4.6 mm | 0.181 in | Forked | All | 2 | Gold | 0.05 in | 1.27 mm | Black | UL94 V-0 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 250 VAC | Through Hole | Thermoplastic | Phosphor Bronze | Rectangular | 0.118 in | 3 mm | Gold | Flash | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.51 | |
| 10 | $ 1.15 | |||
| 100 | $ 0.89 | |||
Description
General part information
HRS-2B Series

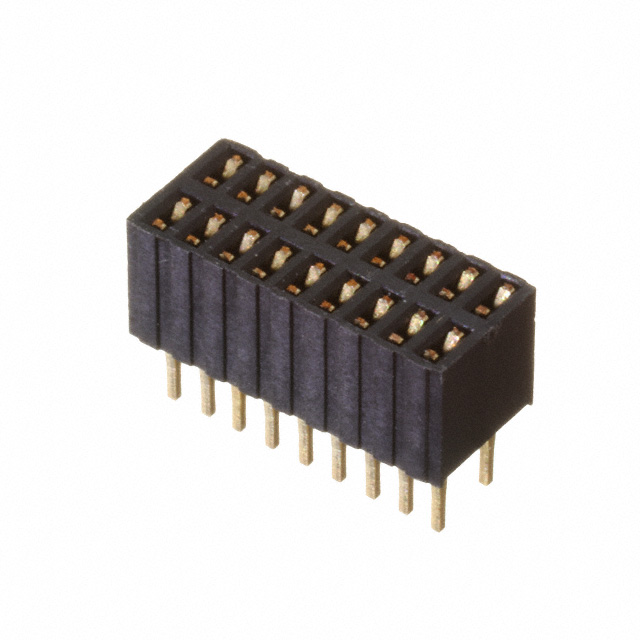

18 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
