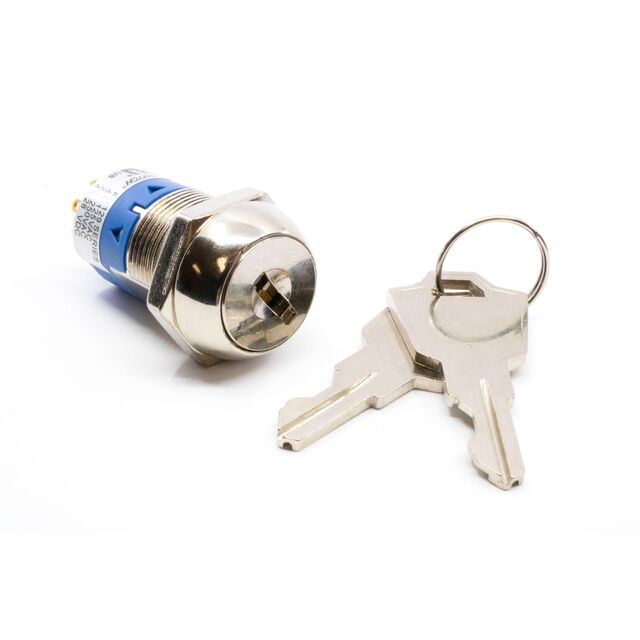

KO129 Series

Part	Contact Finish	Mounting Type	Current Rating	Voltage Rating - AC	Switch Function	Panel Cutout Diameter	Panel Cutout Shape	Number of Positions	Circuit	Actuator Type	Termination Style	Contact Material	Removable Positions	Angle of Throw	Depth Behind Flange	Removable Positions Count
E-Switch KO107A1097	Silver	Panel Mount	1 A	125 V	Off-On	12 mm	Circular	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °
E-Switch KO132A1097	Silver	Panel Mount	1 A	125 V	Off-On	12 mm	Circular	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °
E-Switch KO105A1001	Silver	Panel Mount	1 A	125 V	Off-On	12 mm	Circular	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °	19 mm
E-Switch KO117A125	Silver	Panel Mount	4 A	125 V	Off-On	19 mm	Circular	2	SPST	Flat Key	Solder Lug	Copper Alloy	All	90 °	33.3 mm
E-Switch KO132B1501	Silver	Panel Mount	1 A	125 V	On-On	12 mm	Circular	2	SPDT	Tubular Key	Solder Lug	Copper Alloy	All	90 °	18.3 mm
E-Switch KO130Z4A126	Silver	Panel Mount	4 A	125 V	On-On-On	19 mm	Circular	3	SP3T	Flat Key	Solder Lug	Copper Alloy	All	90 °
E-Switch KO130JA126	Silver	Panel Mount	4 A	125 V	On-On-On	19 mm	Circular	3	DP3T	Flat Key	Solder Lug	Copper Alloy	All	45 °
E-Switch KO113A10001	Silver	Panel Mount	4 A	125 V	Off-On	19 mm	Circular	2	SPST	Tubular Key	Solder Lug	Copper Alloy		90 °		1
E-Switch KO131A102	Silver	Panel Mount	1 A	125 V	Off-On	12 mm	Circular	2	SPST	Tubular Key	Solder Lug	Copper Alloy	All	90 °	19 mm
E-Switch KO132D1506HT	Silver	Panel Mount	1 A	125 V	On-Off-On	12 mm	Circular	3	SPDT	Tubular Key	PC Pin	Copper Alloy		45 °		2
