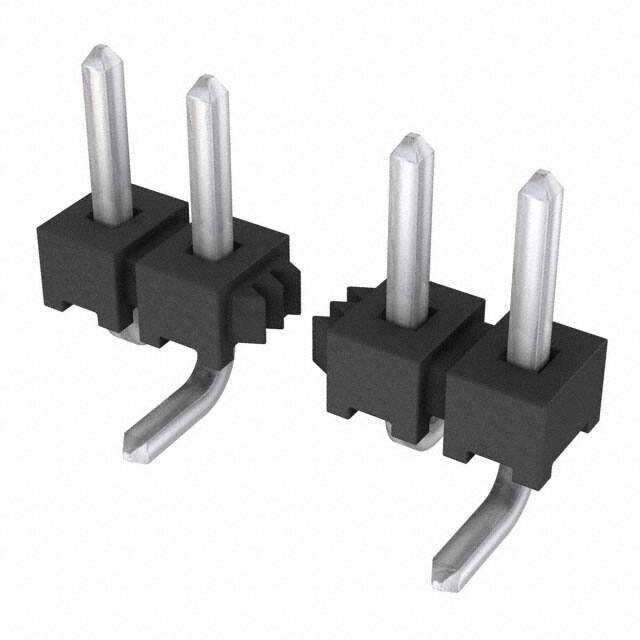

TMM-114-01-T-S-SM

Active

Samtec Inc.

CONN HEADER SMD 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TMM Single Row SMT Footprint +1

TMM-114-01-T-S-SM

Active

Samtec Inc.

CONN HEADER SMD 14POS 2MM

Deep-Dive with AI

DocumentsDatasheet TMM Single Row SMT Footprint +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-114-01-T-S-SM

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-114 Series

...

Part	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Material	Contact Type	Connector Type	Features	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish - Mating	Termination	Material Flammability Rating	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. TMM-114-01-S-S-SM-P	Surface Mount	All	1.5 mm	0.059 "	1	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header	Pick and Place	Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	14	Push-Pull	Square	-55 °C	125 °C
Samtec Inc. TMM-114-01-T-S-SM	Surface Mount	All	1.5 mm	0.059 "	1	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header		Tin	3.2 mm	0.126 "	Board to Board Cable		Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)			14	Push-Pull	Square	-55 °C	105 ░C
Samtec Inc. TMM-114-01-S-D	Through Hole	All	1.5 mm	0.059 "	2	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header		Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder		Black	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	28	Push-Pull	Square	-55 °C	125 °C	0.079 in	2 mm	3.5 mm	0.138 in	8.2 mm	0.323 in
Samtec Inc. TMM-114-01-SM-D	Through Hole	All	1.5 mm	0.059 "	2	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header		Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder		Black	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	28	Push-Pull	Square	-55 °C	125 °C	0.079 in	2 mm	3.5 mm	0.138 in	8.2 mm	0.323 in
Samtec Inc. TMM-114-01-L-D-RA	Through Hole Right Angle	All	3.94 mm	0.155 in	2	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header		Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder		Black	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	28	Push-Pull	Square	-55 °C	125 °C	0.079 in	2 mm					0.12 in	3.05 mm
Samtec Inc. TMM-114-04-L-D-SM-P	Surface Mount	All	1.5 mm	0.059 "	2	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header	Pick and Place	Tin			Board to Board Cable	Gold	Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	28	Push-Pull	Square	-55 °C	125 °C	0.079 in	2 mm							1.9 mm	0.075 in
Samtec Inc. TMM-114-01-T-S-SM-P	Surface Mount	All	1.5 mm	0.059 "	1	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header	Pick and Place	Tin	3.2 mm	0.126 "	Board to Board Cable		Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)			14	Push-Pull	Square	-55 °C	105 ░C
Samtec Inc. TMM-114-01-L-S-SM	Surface Mount	All	1.5 mm	0.059 "	1	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header		Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	14	Push-Pull	Square	-55 °C	125 °C
Samtec Inc. TMM-114-01-F-S-SM-P-TR	Surface Mount	All	1.5 mm	0.059 "	1	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header	Pick and Place	Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	14	Push-Pull	Square	-55 °C	125 °C
Samtec Inc. TMM-114-01-S-S-SM	Surface Mount	All	1.5 mm	0.059 "	1	3.2 A	0.079 in	2 mm	Unshrouded	Phosphor Bronze	Male Pin	Header		Tin	3.2 mm	0.126 "	Board to Board Cable	Gold	Solder	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	14	Push-Pull	Square	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		10	$ 1.71
		100	$ 1.52
		500	$ 1.27
		1000	$ 1.09
		5000	$ 0.97
		10000	$ 0.96

Description

General part information

TMM-114 Series

Connector Header Surface Mount 14 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

TMM Single Row SMT Footprint

Datasheet

MMS/TW/TMM Product Specification

Datasheet
