MAX11200EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11200EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11200EVKIT+ | MAX11200 Series |
|---|---|---|
| Architecture | - | Sigma-Delta |
| Configuration | - | ADC |
| Data Interface | QSPI™, Serial, SPI™, MICROWIRE™ | SPI, QSPI™, Serial, SPI™, MICROWIRE™ |
| Input Range | ±VREF | ±VREF |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 24 | 24 |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.154 in |
| Package / Case | - | 16-SSOP |
| Package / Case | - | 3.9 mm |
| Reference Type | - | External |
| Sampling Rate (Per Second) | 480 Per Second | 480 Per Second |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 16-QSOP |
| Utilized IC / Part | MAX11200 | MAX11200 |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Digital | - | 1.7 - 1.71 V |
| Voltage - Supply, Digital | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 120.12 | |
MAX11200 Series
IC ADC 24BIT SIGMA-DELTA 16QSOP
| Part | Architecture | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Supplier Device Package | Number of Inputs | Package / Case | Package / Case | Package / Case | Mounting Type | Configuration | Number of A/D Converters | Operating Temperature [Max] | Operating Temperature [Min] | Number of Bits | Data Interface | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Reference Type | Sampling Rate (Per Second) | Input Type | Supplied Contents | Utilized IC / Part | Input Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11200EEE+T | Sigma-Delta | 1.71 V | 3.6 V | 16-QSOP | 1 | 0.154 in | 16-SSOP | 3.9 mm | Surface Mount | ADC | 1 | 85 °C | -40 °C | 24 | SPI | 2.7 V | 3.6 V | External | 480 Per Second | Differential | |||
Analog Devices Inc./Maxim Integrated MAX11200EEE+ | Sigma-Delta | 1.7 V | 3.6 V | 16-QSOP | 1 | 0.154 in | 16-SSOP | 3.9 mm | Surface Mount | ADC | 1 | 85 °C | -40 °C | 24 | SPI | 2.7 V | 3.6 V | External | 480 Per Second | Differential | |||
Analog Devices Inc./Maxim Integrated MAX11200EVKIT+ | 1 | 24 | MICROWIRE™, QSPI™, Serial, SPI™ | 480 Per Second | Board(s), Cable(s) | MAX11200 | ±VREF |
Description
General part information
MAX11200 Series

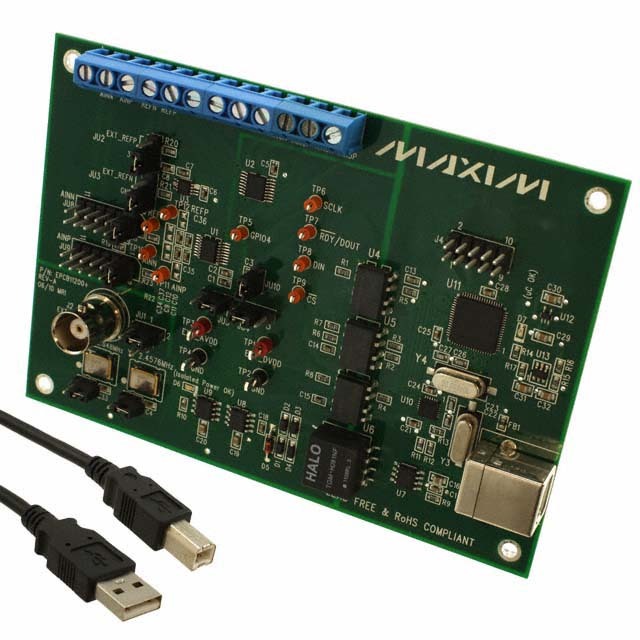

MAX11200 - 24 Bit 480 Samples per Second Analog to Digital Converter (ADC) Evaluation Board
