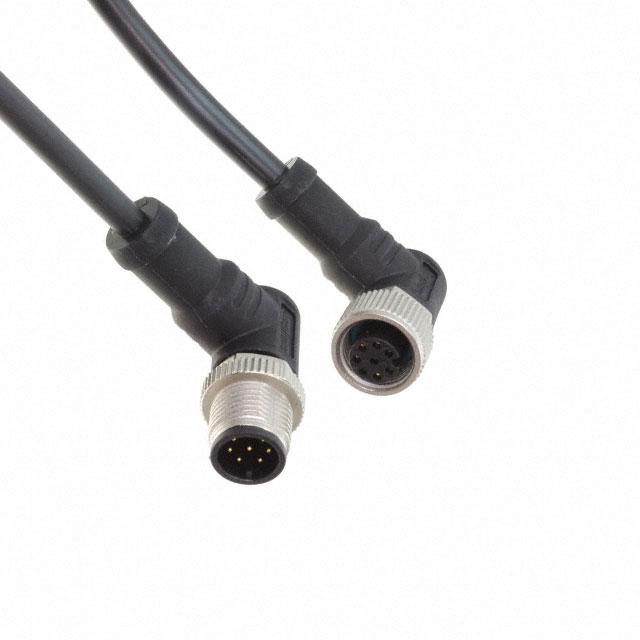

M12A08MR-12AFR-SDA05

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 08 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW THRE

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 08 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW THRE

Technical Specifications

Parameters and characteristics for this part

Specification	M12A08MR-12AFR-SDA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Number of Positions	Color	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert	Length [x]	Length [x]	1st Connector Number of Positions Loaded	1st Connector Type	2nd Connector Type	1st Connector Gender	1st Connector Mounting Type	1st Connector Shell Size - Insert	Cable Material	2nd Connector Mounting Type	Assembly Configuration	Cable Type	Usage	Shielding	Ingress Protection	1st Connector Number of Positions	1st Connector Orientation	2nd Connector Gender
Amphenol LTW M12A08MR-12AMR-SDA05	8	Black	All	M12	1.64 ft	500 mm	All	Receptacle Right Angle	Receptacle Right Angle	Male Pins	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Standard	Round	Industrial Environments	Unshielded	IP68 IP69K	8 positions	A
Amphenol LTW M12A08MR-12AFR-SDA05	8	Black	All	M12	1.64 ft	500 mm	All	Receptacle Right Angle	Plug Right Angle	Male Pins	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Standard	Round	Industrial Environments	Unshielded	IP68 IP69K	8 positions	A	Female Sockets
Amphenol LTW M12A08MR-12AMR-SB001	8	Black	All	M12	3.28 ft	1 m	All	Receptacle Right Angle	Receptacle Right Angle	Male Pins	Free Hanging (In-Line)	M12	Polyurethane (PUR)	Free Hanging (In-Line)	Standard	Round	Industrial Environments	Unshielded	IP68 IP69K	8 positions	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)
