C14610N0108042

Active

Amphenol Tuchel Industrial

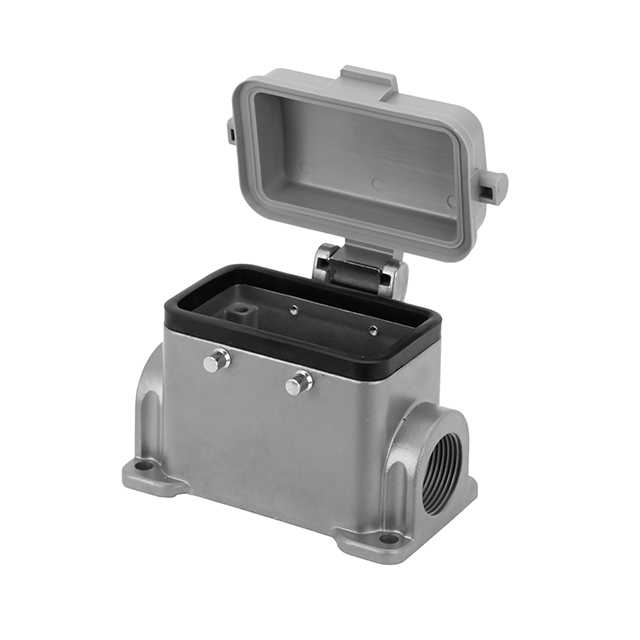

CONN BASE SIDE ENTRY SZE10 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE10 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0108042

Connector Type	Base - Box Mount
Features	Cover
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	3.701 "
Size / Dimension [x]	94 mm
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.126 in
Size / Dimension [z]	2.913 in
Size / Dimension [z]	74 mm
Style	Side Entry
Thread Size	M32

Part	Housing Material	Style	Connector Type	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Thread Size	Ingress Protection	Features
Amphenol Tuchel Industrial C14610N0105002	Aluminum Alloy Die Cast	Side Entry	Base - Box Mount	Locking Clip (2) on Base Bottom	100 °C	-40 °C	E10	3.701 "	54 mm	2.126 in	2.913 in	94 mm	74 mm	M32	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C14610N0108042	Aluminum Alloy Die Cast	Side Entry	Base - Box Mount	Locking Clip (2) on Hood	100 °C	-40 °C	E10	3.701 "	54 mm	2.126 in	2.913 in	94 mm	74 mm	M32	IP65 - Dust Tight Water Resistant	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 45.96

General part information

Base - Box Mount Connector Side Entry M32 E10 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
