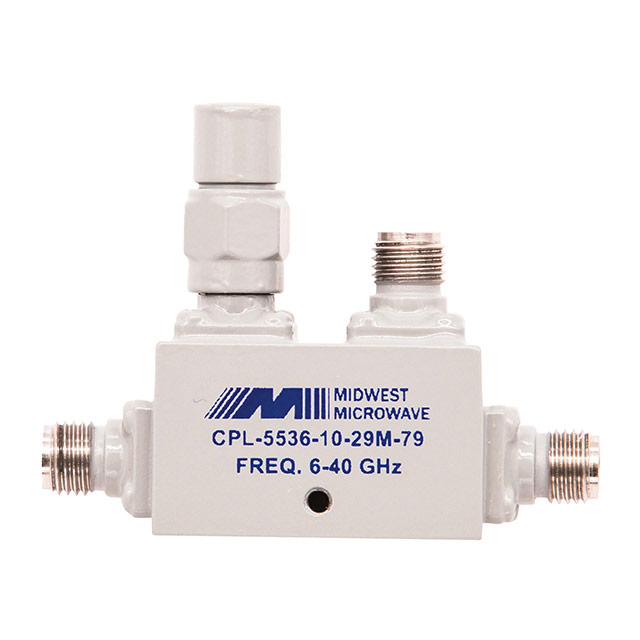

CPL-5536-10-29M-79
ActiveCinch Connectivity Solutions Midwest Microwave
2.92MM COUPLER 10 DB 6-40 GHZ
Deep-Dive with AI
Search across all available documentation for this part.
CPL-5536-10-29M-79
ActiveCinch Connectivity Solutions Midwest Microwave
2.92MM COUPLER 10 DB 6-40 GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CPL-5536-10-29M-79 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 40 GHz |
| Frequency [Min] | 6 GHz |
| Insertion Loss | 1.5 dB |
| Package / Case | Module |
| Power - Max [Max] | 20 W |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5493.30 | |
Description
General part information
CPL-55 Series
RF Directional Coupler General Purpose 6GHz ~ 40GHz 10dB 20W Module
Documents
Technical documentation and resources
No documents available
