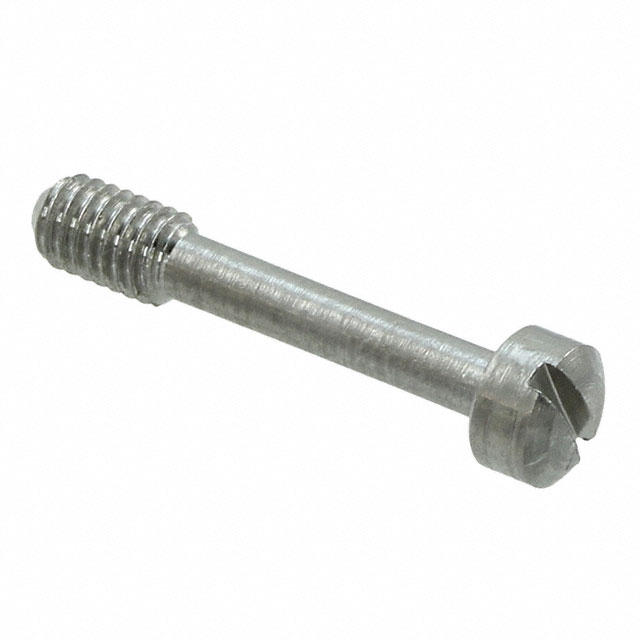

M0289-SS
ActiveRAF Electronic Hardware
PANEL SCREW PAN SLOTTED M3X0.5
Deep-Dive with AI
Search across all available documentation for this part.
M0289-SS
ActiveRAF Electronic Hardware
PANEL SCREW PAN SLOTTED M3X0.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M0289-SS |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 0.169 " |
| Head Diameter [diameter] | 4.3 mm |
| Head Height | 2.69 mm |
| Head Height | 0.106 in |
| Length - Below Head | 0.63 in |
| Length - Below Head | 16 mm |
| Length - Overall [x] | 0.736 in |
| Length - Overall [x] | 18.7 mm |
| Material | Stainless Steel |
| Screw Head Type | Pan Head |
| Thread Size | M3x0.5 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.61 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.95 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.74 | |||
| 2500 | $ 0.67 | |||
Description
General part information
M0289 Series
M3x0.5 Pan Head Panel Screw Slotted Drive Stainless Steel
