0801690

Active

Phoenix Contact

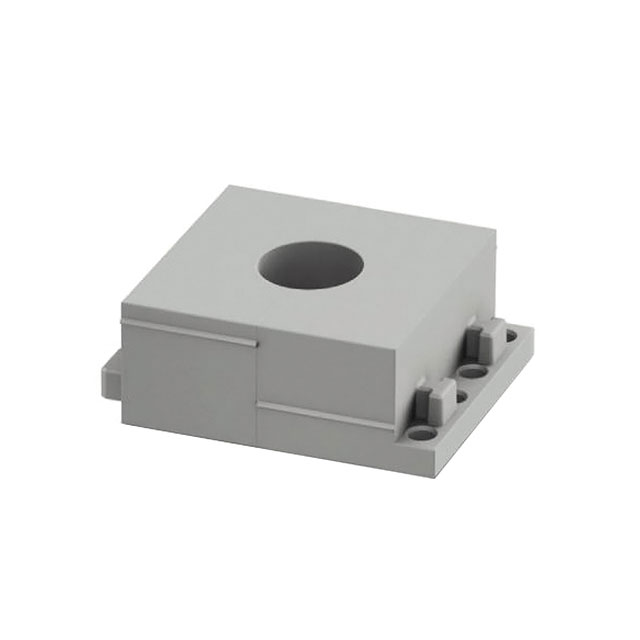

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Search across all available documentation for this part.

0801690

Active

Phoenix Contact

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.39
		10	$ 4.79
		50	$ 4.37
		100	$ 4.19
		250	$ 3.83
		500	$ 3.59
		1000	$ 3.33

Description

General part information

CES-LTPG Series

Frame Grommet 0.669" ~ 0.709" (17.00mm ~ 18.00mm) Gray

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801690	CES-LTPG Series

Accessory Type	-	Hole Plug
Bushing, Grommet Type	Frame Grommet	Frame Grommet
Color	Gray	Gray
Diameter - Inside	-	31 - 32 mm
Diameter - Inside	-	15 - 31 mm
Diameter - Inside [Max] [diameter]	18 mm	18 - 24 mm
Diameter - Inside [Max] [diameter]	0.709 in	0.591 - 1.26 in
Diameter - Inside [Min] [diameter]	0.669 in	0.551 - 1.22 in
Diameter - Inside [Min] [diameter]	17 mm	14 - 30 mm
Features	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch, IP54
For Use With/Related Products	Wires, Cable	Wires, Cable, PLUSCON CES Sealing Frames
Material	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS, Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0

CES-LTPG Series

FRAME GROMMET ELASTOMER GRAY

Part	Features	Diameter - Inside	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Material	Material Flammability Rating	For Use With/Related Products	Color	Bushing, Grommet Type	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]
Phoenix Contact 0801706	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	31 mm, 32 mm	1.22 in	1.26 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet
Phoenix Contact 0801690	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.669 in	0.709 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet	18 mm	17 mm
Phoenix Contact 0801705	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		1.181 "	1.22 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		30 mm	31 mm
Phoenix Contact 0801697	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.906 in	0.945 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet	24 mm	23 mm
Phoenix Contact 0801698	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.945 "	0.984 "	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		24 mm	25 mm
Phoenix Contact 0801699	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.984 "	1.024 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		25 mm	26 mm
Phoenix Contact 0801691	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.709 "	0.748 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		18 mm	19 mm
Phoenix Contact 0801687	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.551 in	0.591 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		14 mm	15 mm
Phoenix Contact 0801702	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		1.102 "	1.142 "	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		28 mm	29 mm
Phoenix Contact 0801693	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.787 "	0.827 "	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		20 mm	21 mm
