LM3668SDX-2833/NOPB
ActiveNational Semiconductor
IC REG BUCK-BST PROG 1A 12WSON
Deep-Dive with AI
Search across all available documentation for this part.
LM3668SDX-2833/NOPB
ActiveNational Semiconductor
IC REG BUCK-BST PROG 1A 12WSON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM3668SDX-2833/NOPB |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 2.2 MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |

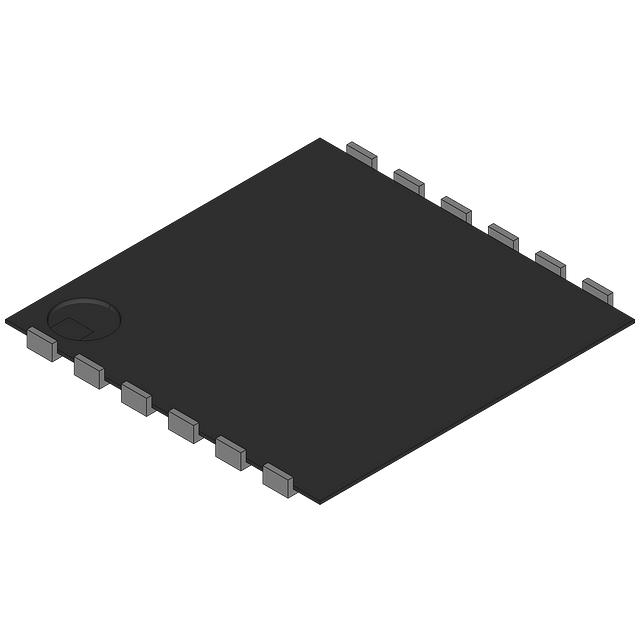

| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck-Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V, 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 233 | $ 1.29 | |
Description
General part information
LM3668 Series
Buck-Boost Switching Regulator IC Positive Programmable 2.8V, 3.3V 1 Output 1A 12-WFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
