42-01002

Active

Amphenol CONEC

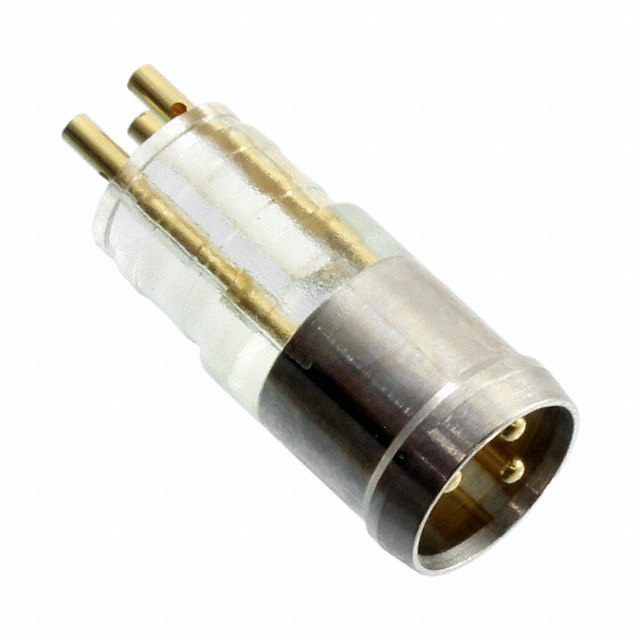

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

42-01002

Active

Amphenol CONEC

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	42-01002

Color	Silver, Translucent
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M8-3
Shielding	Unshielded
Voltage Rating	60 VDC

42-0100 Series

Part	Contact Material	Contact Finish - Mating	Shell Finish	Material Flammability Rating	Shell Size - Insert	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Voltage Rating	Fastening Type	Shell Material	Connector Type	Insert Material	Number of Positions	Current Rating (Amps)	Shielding	1st Connector Orientation	Cable Type	1st Connector Shell Size - Insert	Length	Length [x]	2nd Connector Type	1st Connector Mounting Type	Assembly Configuration	1st Connector Gender	Usage	Cable Material	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Number of Positions
Amphenol CONEC 42-01009	Copper Zinc	Gold	Nickel	UL94	M8-4	Metal	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Silver Translucent	30 VDC	Push-Pull	Copper Zinc	Male Pins Receptacle	Nylon Polyamide (PA)	4	3 A	Unshielded
Amphenol CONEC 42-01008	Copper Zinc	Gold	Nickel	UL94	M8-3	Metal	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Silver Translucent	60 VDC	Push-Pull	Copper Zinc	Male Pins Plug	Nylon Polyamide (PA)		3 A	Unshielded
Amphenol CONEC 42-01000										IP67 - Dust Tight Waterproof	Multiple								Unshielded	A	Individual	M8	200 mm	0.66 ft	Wire Leads	Panel Mount	Standard	Female Sockets	Industrial Environments	Polyvinyl Chloride (PVC)	Plug	All	3
Amphenol CONEC 42-01007	Copper Zinc	Gold		UL94	M8-4	Plastic	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Translucent	30 VDC	Push-Pull		Male Pins Plug	Nylon Polyamide (PA)	4	3 A	Unshielded
Amphenol CONEC 42-01003	Copper Zinc	Gold	Nickel	UL94	M8-4	Metal	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Silver Translucent	30 VDC	Push-Pull	Copper Zinc	Male Pins Plug	Nylon Polyamide (PA)	4	3 A	Unshielded
Amphenol CONEC 42-01002	Copper Zinc	Gold	Nickel	UL94	M8-3	Metal	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Silver Translucent	60 VDC	Push-Pull	Copper Zinc	Male Pins Plug	Nylon Polyamide (PA)		3 A	Unshielded
Amphenol CONEC 42-01006	Copper Zinc	Gold		UL94	M8-4	Plastic	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Black	30 VDC	Push-Pull	Glass Filled Nylon Polyamide (PA)	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	4	3 A	Unshielded
Amphenol CONEC 42-01005	Copper Zinc	Gold		UL94	M8-3	Plastic	A	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	Translucent	60 VDC	Push-Pull		Male Pins Plug	Nylon Polyamide (PA)		3 A	Unshielded
Amphenol CONEC 42-01001										IP67 - Dust Tight Waterproof	Multiple								Unshielded	A	Individual	M8	200 mm	0.66 ft	Wire Leads	Panel Mount	Standard	Female Sockets	Industrial Environments	Polyvinyl Chloride (PVC)	Plug	All	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.84
		10	$ 2.58
		25	$ 2.44
		50	$ 2.39
		100	$ 2.27
		300	$ 2.00

Description

General part information

42-0100 Series

3 Position Circular Connector Plug, Male Pins Solder Cup
