155226-2300-RB

Active

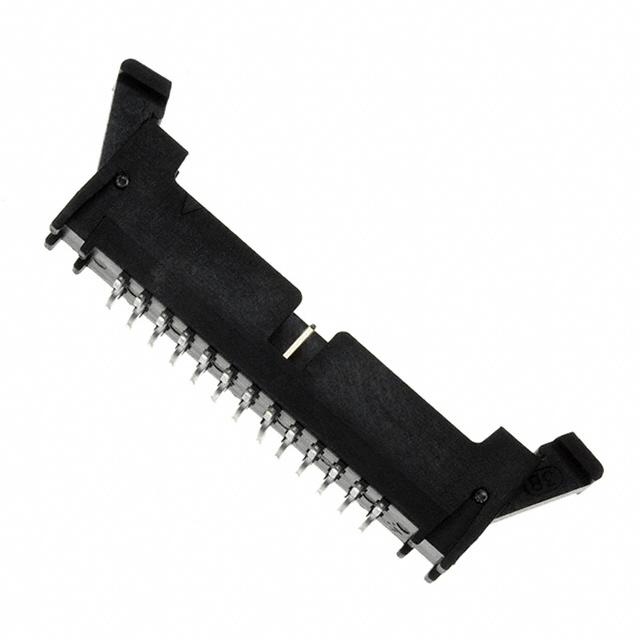

CONN HEADER SMD 26POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

155226-2300-RB

Active

CONN HEADER SMD 26POS 2MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	196	$ 10.13

Description

General part information

155226 Series

Connector Header Surface Mount 26 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155226-2300-RB	155226 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	-	2.84 - 3.94 mm
Contact Length - Post	-	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	26	26
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155226 Series

CONN HEADER SMD 26POS 2MM

Part	Fastening Type	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Features	Shrouding	Style	Connector Type	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post
3M 155226-2300-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Surface Mount	0.425 in	10.8 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm
3M 155226-2300-RB-WF	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Surface Mount	0.425 in	10.8 mm	Tin	Keying Slot, Pick and Place	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm
3M 155226-6302-RA	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole	0.425 in	10.8 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	10 çin	0.25 çm	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
3M 155226-6202-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole	0.425 in	10.8 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
3M 155226-5202-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole, Right Angle	0.247 in	6.28 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
3M 155226-5303-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole, Right Angle	0.247 in	6.28 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	3.94 mm	0.155 "
3M 155226-5302-RB	Latch Lock/Eject Hooks	Gold	26	200 µin	5.08 µm	Male Pin	0.079 in	2 mm	UL94 V-0	Copper Alloy	105 ░C	-55 °C	Through Hole, Right Angle	0.247 in	6.28 mm	Tin	Keying Slot	Shrouded - 4 Wall	Board to Cable/Wire	Header	All	Square	30 Áin	0.76 Ám	Solder	1.25 A	2	0.15 in	3.81 mm	Black	0.079 in	2 mm	2.84 mm	0.112 in
