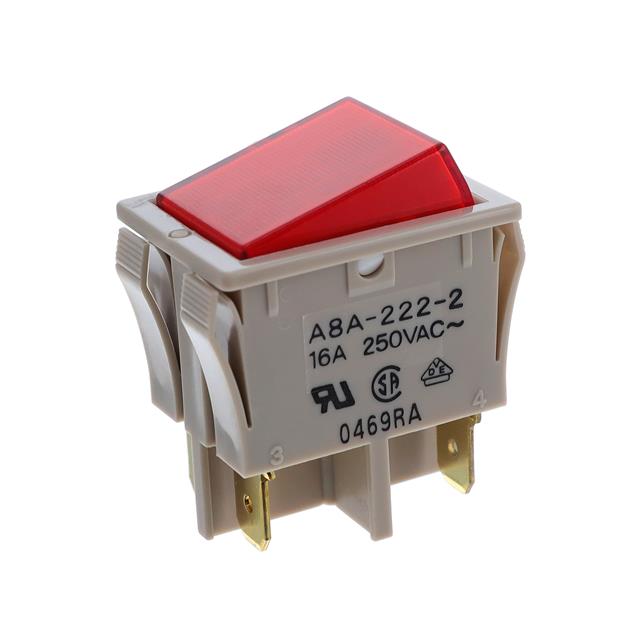

A8A-222-2

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	A8A-222-2

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Approval Agency	CSA, EN, UL
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	16 A
Electrical Life	20000 Steps
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	220 VAC/DC
Ingress Protection	IP00
Mechanical Life	40000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

SWITCH ROCKER DPST 16A 125V

Part	Circuit	Switch Function	Actuator Marking	Illumination Type, Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Voltage Rating - AC	Electrical Life	Mechanical Life	Termination Style	Ingress Protection	Approval Agency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Color - Actuator/Cap	Current Rating (Amps)
Omron Electronics Inc-EMC Div A8A-222-2	DPST	On-Off	No Marking	Neon, Red	30 mm	22 mm	Flat - Illuminated	125 V	20000 Steps	40000 Cycles	Quick Connect - 0.250" (6.3mm)	IP00	CSA, EN, UL	Panel Mount, Snap-In	50 °C	-25 °C	220 VAC/DC	Red	16 A
