APC-1017

Active

American Bright Optoelectronics Corporation

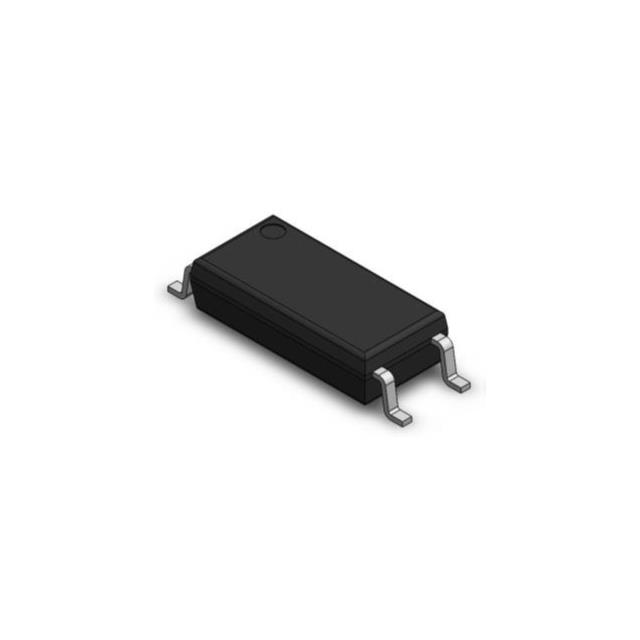

LSOP4, DC INPUT, PHOTO TRANSISTO

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LSOP4, DC INPUT, PHOTO TRANSISTO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APC-1017	APC-101 Series

Current - DC Forward (If) (Max) [Max]	60 mA	60 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	-	260 - 400 %
Current Transfer Ratio (Max) [Max]	160 %	160 %
Current Transfer Ratio (Min) [Min]	80 %	80 - 200 %
Input Type	DC	DC
Mounting Type	Surface Mount	Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	8 µs	8 µs
Rise / Fall Time (Typ) [custom]	6 µs	6 µs
Supplier Device Package	4-LSOP	4-LSOP
Vce Saturation (Max) [Max]	300 mV	300 mV
Voltage - Forward (Vf) (Typ)	1.45 V	1.45 V

LSOP4, DC INPUT, PHOTO TRANSISTO

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Mounting Type	Number of Channels	Supplier Device Package	Output Type	Vce Saturation (Max) [Max]	Package / Case	Input Type	Current - Output / Channel	Current Transfer Ratio (Max) [Max]
American Bright Optoelectronics Corporation APC-1019	8 µs	6 µs	-55 °C	110 °C	400 %	200 %	1.45 V	60 mA	Surface Mount	1	4-LSOP	1.81 mOhm	300 mV	4-SMD, Gull Wing	DC	50 mA
American Bright Optoelectronics Corporation APC-1017	8 µs	6 µs	-55 °C	110 °C		80 %	1.45 V	60 mA	Surface Mount	1	4-LSOP	1.81 mOhm	300 mV	4-SMD, Gull Wing	DC	50 mA	160 %
American Bright Optoelectronics Corporation APC-1018	8 µs	6 µs	-55 °C	110 °C	260 %	130 %	1.45 V	60 mA	Surface Mount	1	4-LSOP	1.81 mOhm	300 mV	4-SMD, Gull Wing	DC	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-LSOP
