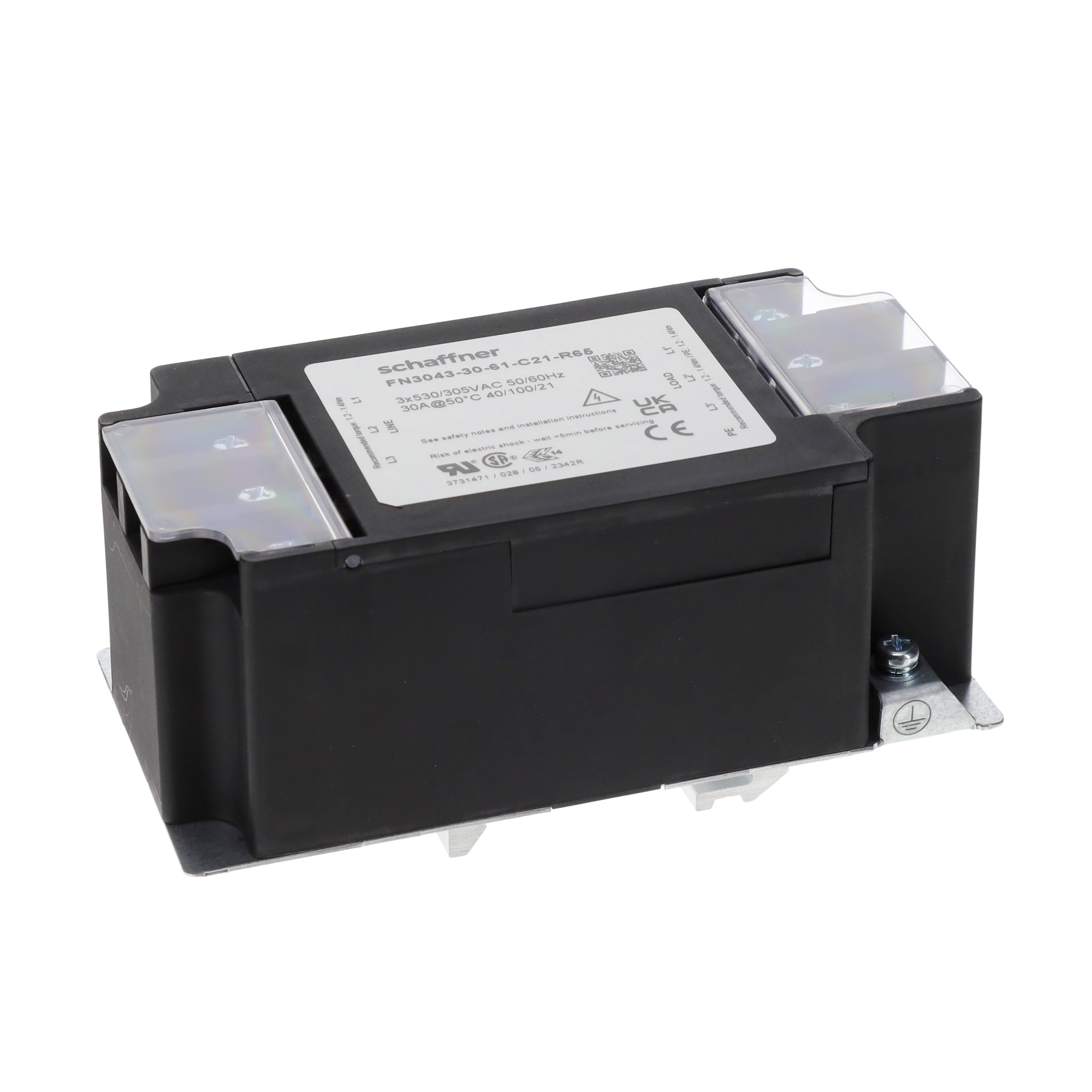

FN3043-30-61-C21-R65

Active

TE Connectivity Raychem Cable Protection

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FN3043-30-61-C21-R65

Technical Specifications

Parameters and characteristics for this part

Specification	FN3043-30-61-C21-R65

Applications	General Purpose
Approval Agency	ENEC, CSA, UKCA, UR, CE
Configuration	Single Stage
Current	30 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	DIN Rail
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	305 V

Part	Termination Style	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Voltage - Rated AC (Phase to Ground/Neutral)	Filter Type	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Approval Agency
TE Connectivity Raychem Cable Protection FN3043-20-61-C21-R65	Terminal Block	General Purpose	100 °C	-40 °C	Single Stage	305 V	Three Phase (Delta)	20 A	60 Hz	DC	DIN Rail	CE CSA ENEC UKCA UR
TE Connectivity Raychem Cable Protection FN3043-30-61-C21-R65	Terminal Block	General Purpose	100 °C	-40 °C	Single Stage	305 V	Three Phase (Delta)	30 A	60 Hz	DC	DIN Rail	CE CSA ENEC UKCA UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 A 3-Phase Filter, Ring Terminal Input, Ring Terminal Output, Three Phase, 530 VAC, Chassis Mount, Schaffner FN3043
