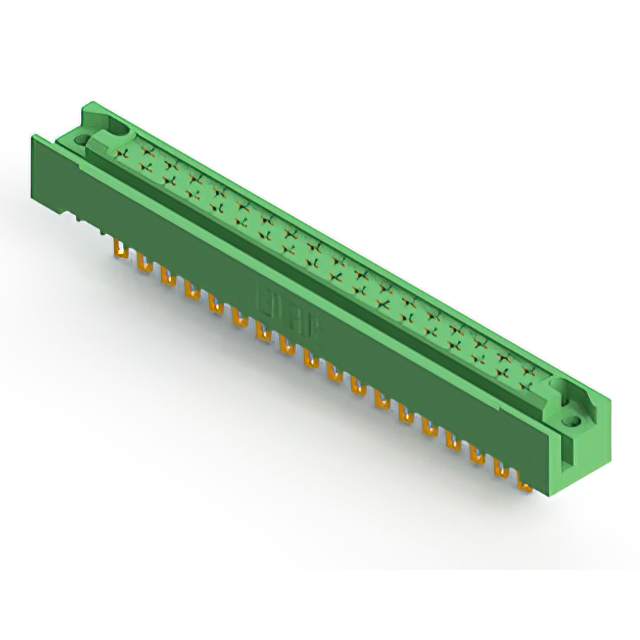

424-035-500-122

Active

EDAC Inc.

CONN EDGE DUAL FMALE 35POS 0.200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

424-035-500-122

Active

EDAC Inc.

CONN EDGE DUAL FMALE 35POS 0.200

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	424-035-500-122

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder Eyelet(s)
Termination Rows	2

424-035 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Number of Rows	Termination	Card Thickness	Card Thickness	Contact Material	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Card Type	Termination Rows	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Material - Insulation
EDAC Inc. 424-035-502-122	10 Áin	0.25 Ám	35	Green	2	Solder	0.093 in	2.36 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-500-122	10 Áin	0.25 Ám	35	Green	2	Solder Eyelet(s)	0.093 in	2.36 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-525-112	10 Áin	0.25 Ám	35	Green	2	Solder	0.062 in	1.57 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-541-122	10 Áin	0.25 Ám	35	Green	2	Wire Wrap	0.093 in	2.36 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-502-112	10 Áin	0.25 Ám	35	Green	2	Solder	0.062 in	1.57 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-524-122	10 Áin	0.25 Ám	35	Green	2	Solder	0.093 in	2.36 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-520-112	10 Áin	0.25 Ám	35	Green	2	Solder	0.062 in	1.57 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-524-112	10 Áin	0.25 Ám	35	Green	2	Solder	0.062 in	1.57 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)
EDAC Inc. 424-035-521-112	10 Áin	0.25 Ám	35	Green	2	Solder	0.062 in	1.57 mm	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	0.2 in	5.08 mm	Panel Mount Through Hole	125 °C	-65 ░C	Female	Diallyl Phthalate (DAP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 41.03

Description

General part information

424-035 Series

35 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
