SSI-LXH600SID-150

Active

Lumex Opto/Components Inc.

LED T-5 1/4"12V 636NM RED 6" LD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED T-5 1/4"12V 636NM RED 6" LD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

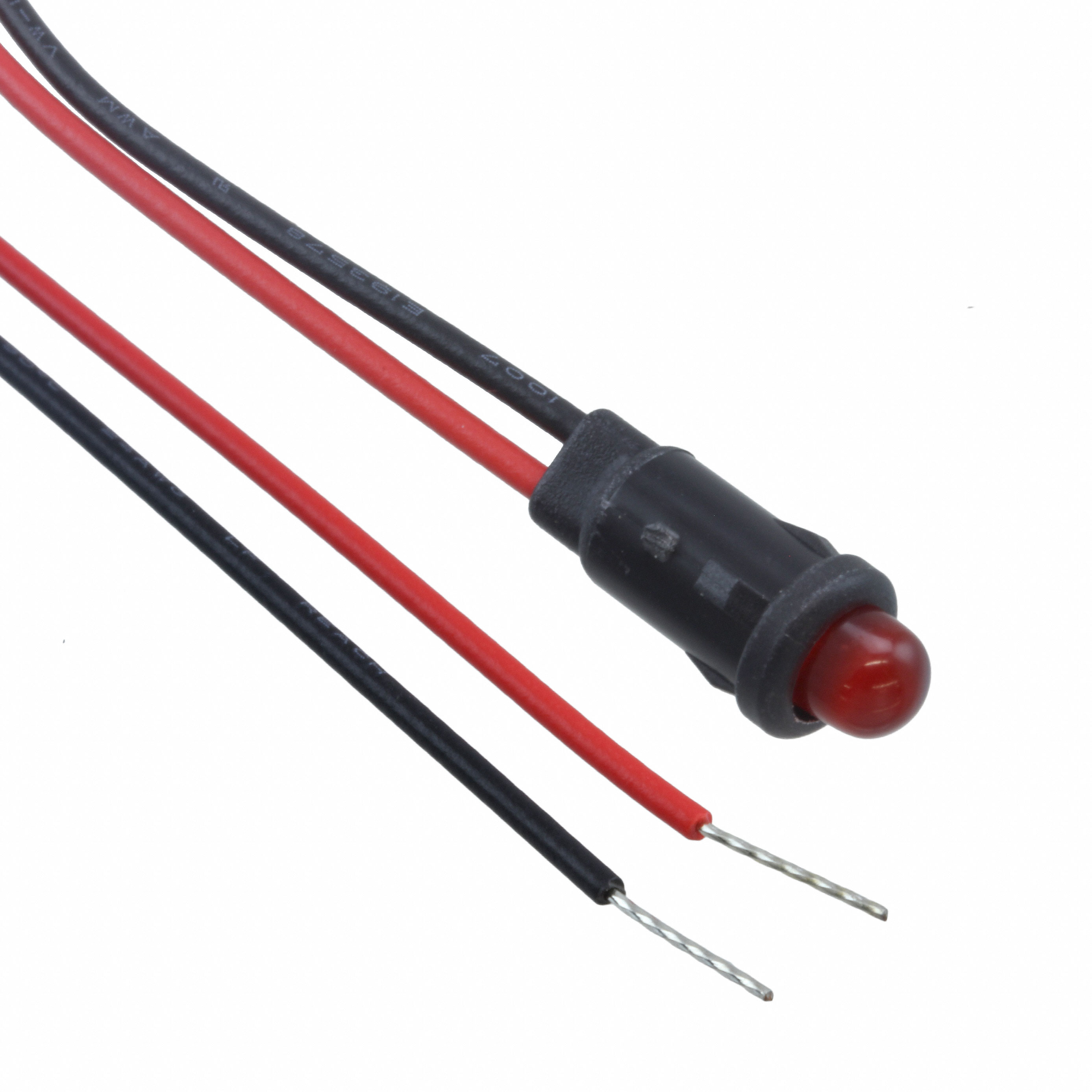

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED 5MM RED/GRN DIFF 6"LDS PNLMT

Part	Voltage	Lens Size	Lens Size	Current [custom]	Current [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lamp Color	Viewing Angle	Panel Cutout Shape	Lens Style	Type	Lens Color	Lens Transparency	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Millicandela Rating	Ratings
Lumex Opto/Components Inc. SSI-LXH600HGW-150	2 V, 2.2 V	T-1 3/4	5 mm	25 mA	25 mA	6 mcd	25 mcd	Green, Red	60 °	Round	Round with Domed Top	LED	White	Diffused	565 nm, 700 nm	6.35 mm	0.25 "
Lumex Opto/Components Inc. SSI-LXH600GD-250
Lumex Opto/Components Inc. SSI-LXH600YD-150	2.1 V	T-1 3/4	5 mm					Yellow	60 °	Round	Round with Domed Top	LED	Yellow	Diffused	585 nm	6.35 mm	0.25 "	30 mA	30 mcd
Lumex Opto/Components Inc. SSI-LXH600GD-150	2.2 V	T-1 3/4	5 mm					Green	60 °	Round	Round with Domed Top	LED	Green	Diffused	565 nm	6.35 mm	0.25 "	25 mA	30 mcd
Lumex Opto/Components Inc. SSI-LXH600GD12V150	12 V	T-1 3/4	5 mm					Green	60 °	Round	Round with Domed Top	LED	Green	Diffused	565 nm	6.35 mm	0.25 "		20 mcd	DC
Lumex Opto/Components Inc. SSI-LXH600SID-150	2 V	T-1	3 mm					Red	60 °	Round	Round with Domed Top	LED	Red	Diffused	636 nm	6.35 mm	0.25 "	30 mA	100 mcd
Lumex Opto/Components Inc. SSI-LXH600USBD-150	3.5 V	T-1 3/4	5 mm					Blue	60 °	Round	Round with Domed Top	LED	Blue	Diffused		6.35 mm	0.25 "		60 mcd
Lumex Opto/Components Inc. SSI-LXH600ID-150	2 V	T-1 3/4	5 mm					Red	60 °	Round	Round with Domed Top	LED	Red	Diffused	635 nm	6.35 mm	0.25 "	30 mA	40 mcd
