SSI-LXH600HGW-150

Active

Lumex Opto/Components Inc.

LED 5MM RED/GRN DIFF 6"LDS PNLMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 5MM RED/GRN DIFF 6"LDS PNLMT

Technical Specifications

Parameters and characteristics commom to parts in this series

LED 5MM RED/GRN DIFF 6"LDS PNLMT

Part	Voltage	Lens Size	Lens Size	Current [custom]	Current [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lamp Color	Viewing Angle	Panel Cutout Shape	Lens Style	Type	Lens Color	Lens Transparency	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Millicandela Rating	Ratings
Lumex Opto/Components Inc. SSI-LXH600HGW-150	2 V, 2.2 V	T-1 3/4	5 mm	25 mA	25 mA	6 mcd	25 mcd	Green, Red	60 °	Round	Round with Domed Top	LED	White	Diffused	565 nm, 700 nm	6.35 mm	0.25 "
Lumex Opto/Components Inc. SSI-LXH600GD-250
Lumex Opto/Components Inc. SSI-LXH600YD-150	2.1 V	T-1 3/4	5 mm					Yellow	60 °	Round	Round with Domed Top	LED	Yellow	Diffused	585 nm	6.35 mm	0.25 "	30 mA	30 mcd
Lumex Opto/Components Inc. SSI-LXH600GD-150	2.2 V	T-1 3/4	5 mm					Green	60 °	Round	Round with Domed Top	LED	Green	Diffused	565 nm	6.35 mm	0.25 "	25 mA	30 mcd
Lumex Opto/Components Inc. SSI-LXH600GD12V150	12 V	T-1 3/4	5 mm					Green	60 °	Round	Round with Domed Top	LED	Green	Diffused	565 nm	6.35 mm	0.25 "		20 mcd	DC
Lumex Opto/Components Inc. SSI-LXH600SID-150	2 V	T-1	3 mm					Red	60 °	Round	Round with Domed Top	LED	Red	Diffused	636 nm	6.35 mm	0.25 "	30 mA	100 mcd
Lumex Opto/Components Inc. SSI-LXH600USBD-150	3.5 V	T-1 3/4	5 mm					Blue	60 °	Round	Round with Domed Top	LED	Blue	Diffused		6.35 mm	0.25 "		60 mcd
Lumex Opto/Components Inc. SSI-LXH600ID-150	2 V	T-1 3/4	5 mm					Red	60 °	Round	Round with Domed Top	LED	Red	Diffused	635 nm	6.35 mm	0.25 "	30 mA	40 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

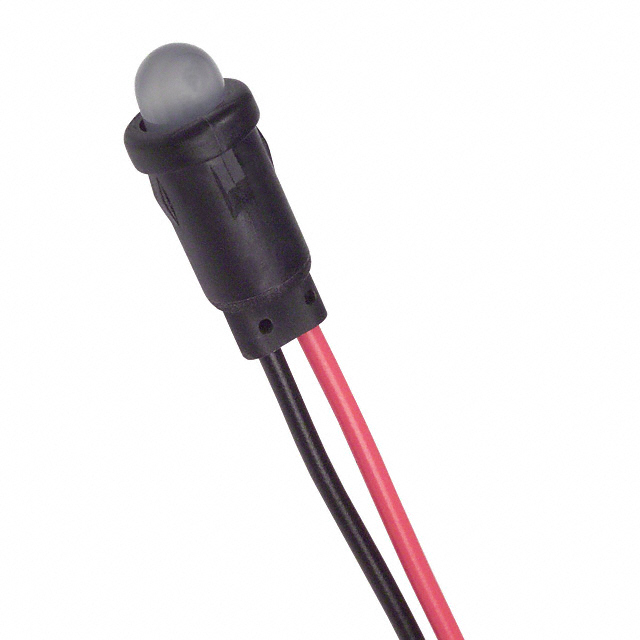

LED Panel Indicator Green, Red Diffused 60° 2.2V Green, 2V Red 25mA Green, 25mA Red Wire Leads - 6" (152.40mm)
