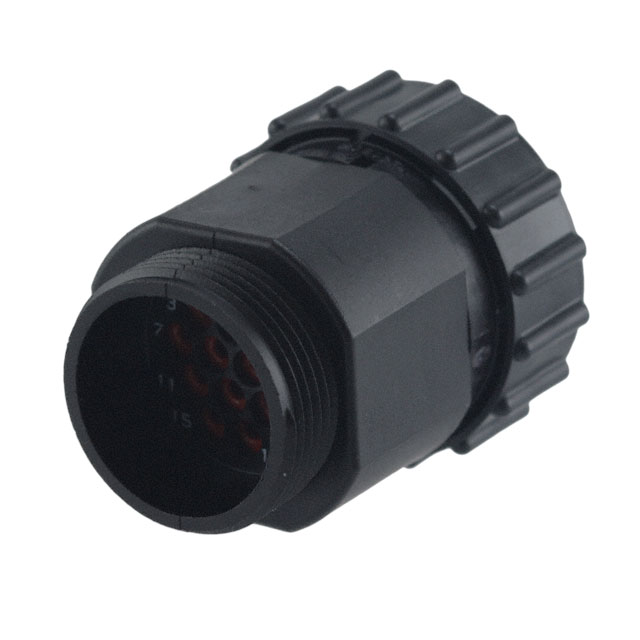

796274-1
ActiveTE Connectivity AMP Connectors
CONN PLG HSG FMALE 16POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796274-1
ActiveTE Connectivity AMP Connectors
CONN PLG HSG FMALE 16POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796274-1 | 796274 Series |
|---|---|---|
| Connector Type | Plug Housing | Plug Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 16 | 16 |
| Contact Type | Crimp | Crimp |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 16 | 16 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Shell Size - Insert [Max] | 16 | 16 |
| Shell Size - Insert [Min] | 17 | 17 |
| Shielding | Unshielded | Unshielded |
| Type | For Female Sockets | For Female Sockets |
796274 Series
CONN PLG HSG FMALE 16POS INLINE
| Part | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Type | Contact Size | Housing Color | Note | Contact Shape | Material Flammability Rating | Contact Type | Features | Insert Material | Shielding | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Mounting Type | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796274-1 | IP67 - Dust Tight, Waterproof | 105 ░C | -55 °C | Keyed | For Female Sockets | 16 | Black | Contacts Not Included | Circular | UL94 V-0 | Crimp | Backshell, Coupling Nut | Thermoplastic | Unshielded | 17 | 16 | Free Hanging (In-Line) | 16 | Plug Housing |
TE Connectivity AMP Connectors 796274-2 | IP67 - Dust Tight, Waterproof | 105 ░C | -55 °C | Keyed | For Female Sockets | 16 | Black | Contacts Not Included | Circular | UL94 V-0 | Crimp | Backshell, Coupling Nut | Unshielded | 17 | 16 | Free Hanging (In-Line) | 16 | Plug Housing | |
TE Connectivity AMP Connectors 796274-4 | IP67 - Dust Tight, Waterproof | 105 ░C | -55 °C | Keyed | For Female Sockets | 16 | Black | Contacts Not Included | Circular | UL94 V-0 | Crimp | Backshell, Coupling Nut | Thermoplastic | Unshielded | 17 | 16 | Free Hanging (In-Line) | 16 | Plug Housing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.05 | |
| 10 | $ 26.45 | |||
| 25 | $ 24.59 | |||
| 50 | $ 23.23 | |||
| 100 | $ 22.72 | |||
| 300 | $ 22.55 | |||
Description
General part information
796274 Series
16 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
