1787179

Active

Phoenix Contact

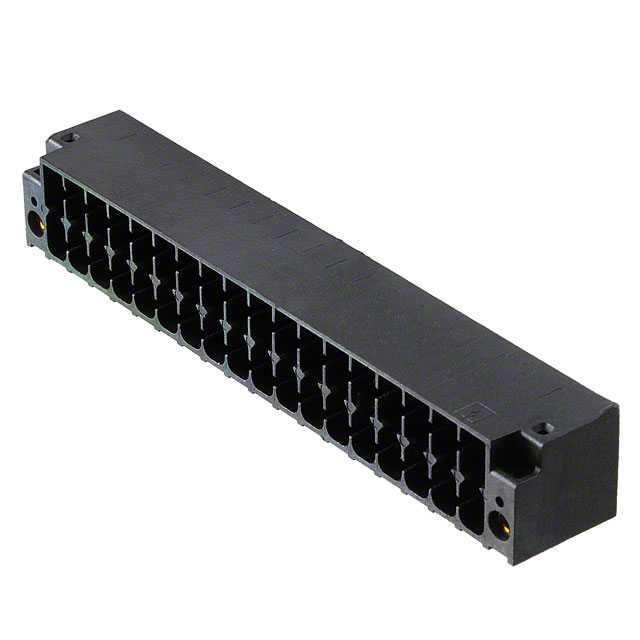

PLUGGABLE TERMINAL BLOCKS 18 POS 3.5MM DBL ROW THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 18 POS 3.5MM DBL ROW THROUGH HOLE HEADER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.56
Sager	N/A	50	$ 13.18
		100	$ 12.71

General part information

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1787179	DMC Series

Color	Black	Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.079 in	0.079 in
Contact Tail Length	2 mm	2 mm
Current - IEC	8 A	8 A
Current - UL	8 A	8 A
Features	Mating and Mounting Flange	Mating and Mounting Flange
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Insulation Height	0.425 in	0.425 in
Insulation Height	10.8 mm	10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Number of Positions	36	24 - 38
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	18	12 - 19
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V	250 V
Voltage - UL	150 V	150 V

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header

Part	Mounting Type	Color	Voltage - UL	Material Flammability Rating	Number of Positions	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Housing Material	Type	Number of Levels	Insulation Height	Insulation Height	Termination Style	Voltage - IEC	Current - IEC	Header Orientation	Positions Per Level	Current - UL	Features
Phoenix Contact 1787001	Through Hole	Black	150 V	UL94 V-0	38	Tin	0.079 in	2 mm	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Header, Male Pins, Shrouded (4 Side)	2	0.425 in	10.8 mm	Solder	250 V	8 A	90°, Right Angle	19	8 A
Phoenix Contact 1787179	Through Hole	Black	150 V	UL94 V-0	36	Tin	0.079 in	2 mm	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Header, Male Pins, Shrouded (4 Side)	2	0.425 in	10.8 mm	Solder	250 V	8 A	90°, Right Angle	18	8 A	Mating and Mounting Flange
Phoenix Contact 1786934	Through Hole	Black	150 V	UL94 V-0	24	Tin	0.079 in	2 mm	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Header, Male Pins, Shrouded (4 Side)	2	0.425 in	10.8 mm	Solder	250 V	8 A	90°, Right Angle	12	8 A
