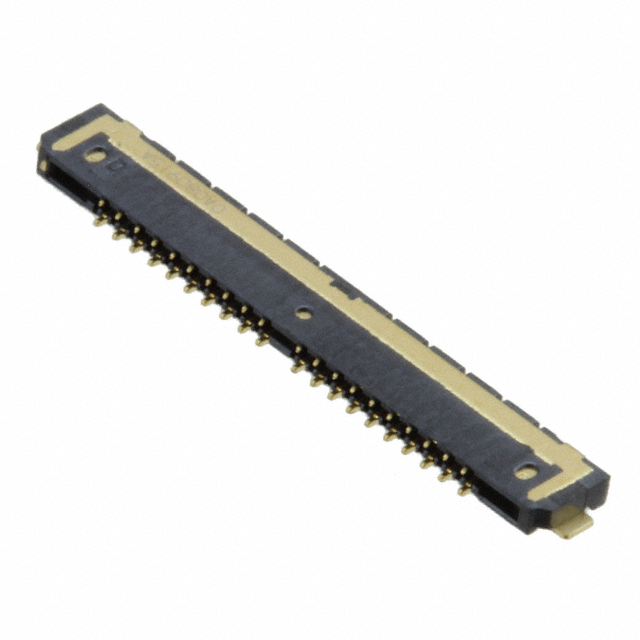

FI-JHS40S-HF07-R3000
ObsoleteJAE Electronics
CONN RCPT 40P 0.01 GOLD SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FI-JHS40S-HF07-R3000
ObsoleteJAE Electronics
CONN RCPT 40P 0.01 GOLD SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FI-JHS40S-HF07-R3000 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Non-Gendered |
| Fastening Type | Friction Lock |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Material | Plastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.01 in |
| Pitch - Mating | 0.25 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FI-JHS40 Series
40 Position Receptacle Connector 0.010" (0.25mm) Surface Mount, Right Angle Gold
