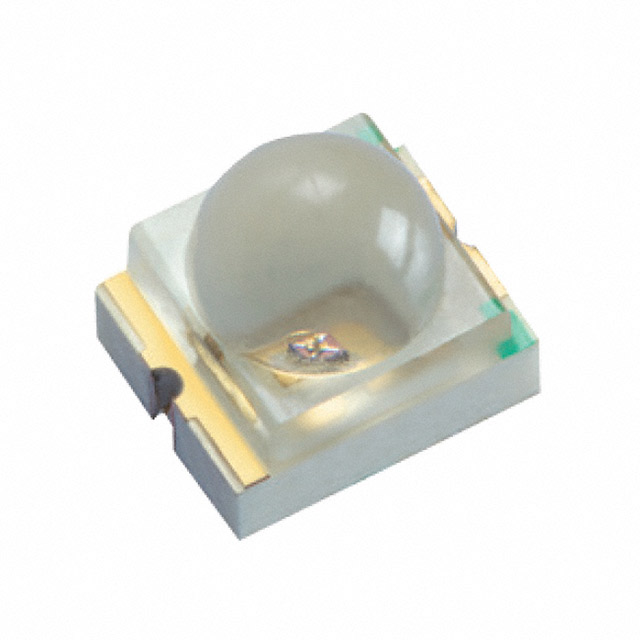

XZFBB45W-2
ActiveSunLED
LED BLUE CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFBB45W-2
ActiveSunLED
LED BLUE CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFBB45W-2 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 3.2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 745 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.17 | |
| 25000 | $ 0.17 | |||
| 50000 | $ 0.16 | |||
Description
General part information
XZFBB45 Series
Blue 470nm LED Indication - Discrete 3.3V 1411 (3528 Metric)
